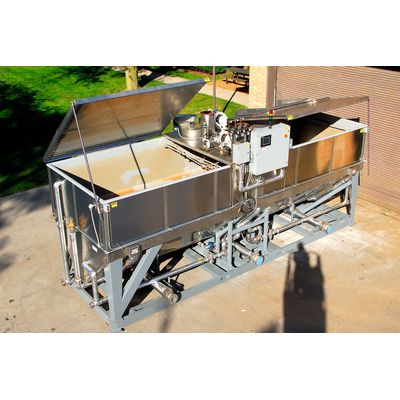

Hot Bottom - Model E-1200 H/O -Steam Heated Evaporators

FromLakeview Engineered Products Inc

SHARE

Construction: stainless steel for all wetted parts. Heat exchanger: 3/8” grade 316L stainless steel, 150 psi maximum pressure, A.S.M.E. Section VIII specifications, “U” stamped. Insulation: 2” foil backed, 850°F, .30 conductivity, .043 SI units. Exhaust blower housing: heavy gauge, tig welded stainless steel. Impeller: self-cleaning backward inclined radial blade design.

Most popular related searches

liquid level sensor

lined ball valve

steam heated evaporator

level controller

steam control valve

floating ball valve

Stack connection: 10” I.D. flanged
Fluid transfer pump: air operated diaphram pump, 1/2” FPT
Blower motor: 3 hp, 3ph, 3450 rpm
Control panel: NEMA 4, industrial duty
Fluid level control: float actuated ball valve
Fluid level sensors: float actuated microswitches, high/low level
Coalescing filter: framed galvanized steel mesh at blower inlet
Clean out: 4” flange with eccentric reducer at 2” FPT
Weir: built in for easy skimming of floating oils
Belt driven blower: eliminates transference of vibration and heat
Pillow block bearings: heavy duty, greasable for long life
Steam trap: 1” NPT trap with strainer on condensate line
Ball valve: 1-1/2” NPT valve on steam inlet to heat exchanger

Special Tank Construction
Exhaust Stacks
Remote Fluid Level Sensors
Overspray/Foam Control
Automation Package
Skimmer/Sludge Pump
Fluid temperature monitor
Modulating steam valve

Industrial safety disconnect at the unit
Air-cooled, counterweighted access lid
Safety circuitry and manual reset
Safety cage around hot moving parts
Redundant safety and level controls

Tank Capacity Maximum: 1,885
Tank Capacity nominal: 1,600
Weight: 7,700
250 Gallons per hour
Length: 257"
Width: 64"
Height: 74"
