SmartWatchWeb - Model SWW10 / SWW11 -Steam Leak Monitor
The valve monitors family SWW1X are steam leak detectors that belong to SmartWatchWeb monitoring system network. These devices allow to detect steam leakage on valves by monitoring ultrasounds, temperature and pressure (optional).
BiTherm SmartWatchWeb system can be used to detect and survey steam leaks and presence of toxic or fammable gas. The steam leak monitor can be used for several applications such as:
- Improving energy efficiency.
- Reducing leaks of process gas.
- Reducing steam leaks.
- Reducing CO2 emissions.
- Monitoring steam traps and safety valves.
- Reducing inspection costs.
- Reducing maintenance costs.

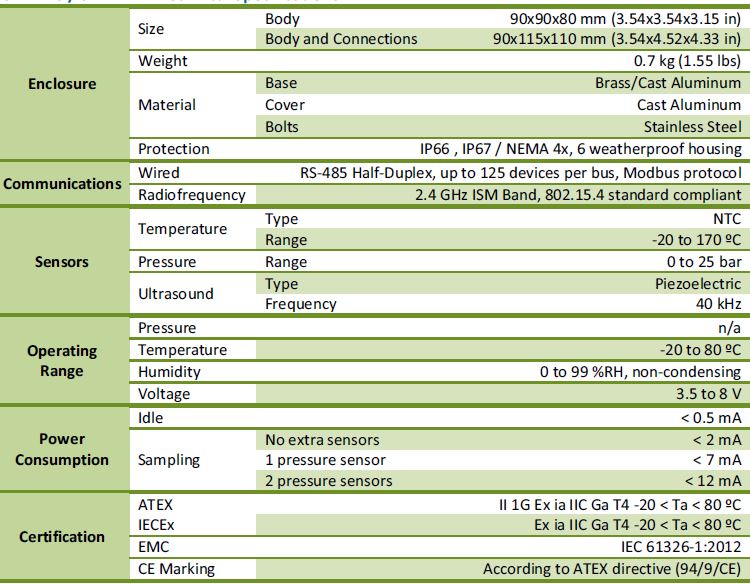

- 4 Measurement channels:
- Temperature.
- Pressure (2x).
- Ultrasounds.
- Half-Duplex communication over RS-485 bus up to
- 125 devices.
- Optional RF communication solution.
- 2.4 GHz ISM band, 802.15.4 compliant.
- Certification:
- ATEX, IECEx.
- EMC 61326-1:2012.
- Ÿ Low Power:
- < 2 mA without pressure sensors.
- each pressure sensor adds ~ 5 mA.
- Ip66, IP67 Protection Grade.
- Easy, non-intrusive installation.
Bitherm SWW10 / SWW11 is easy to install, it being a non-invasive system, no penetration is required (except pressure sensor applications).
Field units can be installed on any kind of steam trap, safety valve or on-off valve.
Installation of field units on steam traps, safety valves, or on-off valves is made with clamps or brackets. Bitherm steam traps do not require brackets, as the sensor is mounted directly on the available connector on the top of the trap.
