Century Spring - Model 75550S -Steel Compression Spring

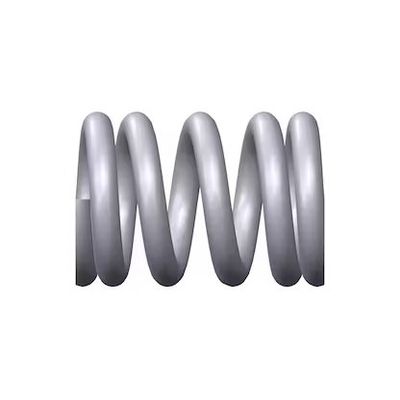

Compression spring manufactured from 302/304 Stainless Steel with 5.5 coils and Closed & Ground ends. This spring features an O.D. of 0.236 Inch, an I.D. of 0.158 Inch, and a spring rate of 112.486 Inch Pounds.

Brand: Century Spring

Display Name: 75550S

Ends: Closed & Ground

Finish: None

Free Length: 0.335 in

Inside Diameter: 0.158 in

Material: 302/304 Stainless Steel

Outside Diameter: 0.236 in

Part Type: Metric

Rate: 112.486 lbs/in

SKU: 75550SCS

Solid Length: 0.217 in

Suggested Max Deflection: 0.08 in

Suggested Max Load: 8.999 lbf

Total Coils: 5.5

Wire Diameter: 0.039 in
