Silver-Lake - Steel Frame Foundation Modular Mobile Truck Scale

No need concrete foundation .can help client save cost

Mobile weighbridge no needs concrete foundation, just smooth hard surface on which the steel frame foundation This saves lots of cost and time. Standard weighbridge foundation and installation takes 1-2 months while Chinese silver lake mobile weighbridges can be installed in 3-4 hours. These weighbridges can also be shifted to another site easily. The modular design helps in easy cost effective transportation and re-installation.

These are steel fabricated modular platform supplied complete with ramps or client can use concrete ramps aslo. The top plate is steel checkered or slip plate.

Modular weighbridge be installed on Frame steel foundation ,client can choose steel ramps or concrete ramps.Height of installation only 450mm,Other factories makes more than 510mm.

Benefits of the protable weighbridge:

• Modular Design- Machine supplied complete with platform, bottom frame and ramps
• Needs no foundation
• Installation in hours
• Can be shifted to an other site easily
• Keeps vigil on costly materials
• Significantly saves time & construction costs
• Most suited for temporary sites

Mobile Weighbridges We offer clients a wide range of mobile weighbridges.  totally mobile and self-contained unit that can be set up at virtually any location within minutes. Further its innovative designs also allow it to be towed by truck-tractor unit, or by tractor using a front dolly, thus reducing the involved transport costs. The products offered under this category include:

Features:

• Steel fabricated modular platform support OIML. Standards NTEP. Standards or other
• Standards laid down by department of Mass metrology Govt. Of India including IP 68 Protection standards. Ted by ramps
• Anti skid duly ribbed top plate

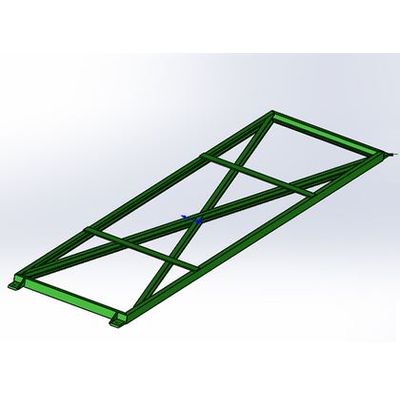

• Steel fabricated bottom frame based on evenly placed joists to form grid network as well as support to platform beneath

• Agriculture industry
• Quarries
• Military
• Construction industry
• Forestry
• Rubbish for landfill sites
• Roading materials
• Demolition materials ex site

• Height of installation only 450mm.
• Fully Welded Platform Structure
• Flexible Module Design
• Fully Welded U Beam Type
• Checkered & Sllip palte Top Plate
• Platform Length : 4 Meter to 24Meter
• Platform Width : 3 Meter to 4.2 Meter
• Accuracy Class : OIML approved Class - III
• Safety Overload : 150%
• Weighing Capacity :60T,80T,100T
• OIML approved Load Cells zemic ,flinte,HBM ,SLIVER LAKE,KELI
• Shot blasting before Painting
• Double Painting for Long anti-rust
• Module Design for Container Transporting,every module have same size ,every module can exchange each other
