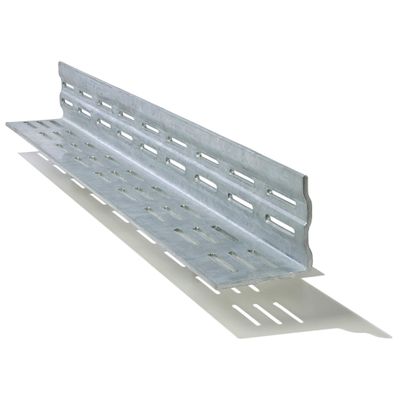

Galintel - Model Rendabar Gen III -Steel Lintels

• Slotted design to support brickwork over openings where a rendered finish is required.
• Gen III design provides maximum adhesion with the introduction of slits on the horizontal and vertical of the lintel creating an excellent mechanical bond for the render.
• New heel profile design makes it easier for brick installation.
• Fully Hot-Dip Galvanised to AS/NZS4680.
• Achieves R3 Durability Rating to AS/NZS2699.3.
• Compliant with relevant Australian Building Codes & Australian Standards.
• Australian designed and manufactured.
• Full product warranty.
• Stamped.
• Labelled & bar coded.

• Superior performance
• Long life and durability
• Easy identification
• Peace of mind

100 m (v) x 100 mm (b) x 6 mm (7.8kg/mtr): 150 mm (v) x 100 mm (b) x 6 mm (10.26kg/mtr)

• 900: 1800
• 1200: 2100
• 1500: 2400
• 1800: 2700
• 2100: 3000
• 2400: 3300
• 3600
• 4000

v = (vertical leg)
b = (base leg)
