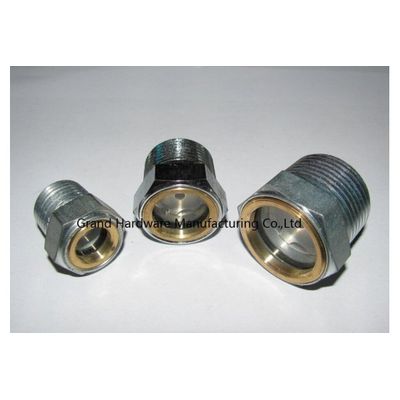

Grandmfgcn - Model GM-SN10 -Steel Oil Sight Glass Plug
Carbon Steel Oil level sight glass Plated. Material Body: Steel Plated(Zinc plated,Nickel plated and chrome plated). O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal. Glass Thickness: 2mm to 8 mm. Reflectors: Stainless Steel 304 Reflector. (Any type you can chose with reflector or without Reflector, You also can add float ball.). Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass. Resist Tempreature Range:-30`C to 180`C. Pressure Range: 5-50 Bar(0.5MPa to 5MPa). Thread type : NPT, NPTF, UNC, UNF, Metric and BSP(G thread). Size: Below you will get the size you wanted.Another size is okay. OEM are welcome. Usage: Pump, Oil Receivers, Gearboxes, Speed Reducer,Compressor and Power Transimission..
