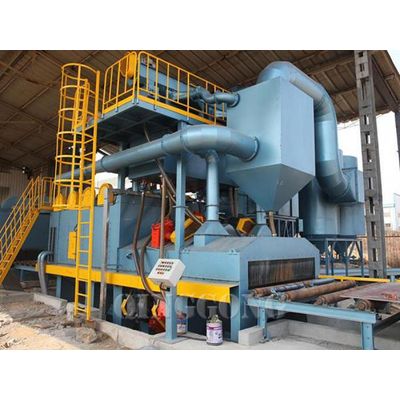

Qinggong - Model QGRB -Steel Plate Shot Blasting Machine
Steel plate shot blasting machine is one kind of roller conveyor shot blasting machines. It can remove all rust, corrosion and mill scale from steel plate and provides ideal surface finish (SA2.5) for securing a continuous and effective bond between the steel surface and coat. Our company` s steel shot blaster is for sale.
Abrasive cleaning up system:
Abrasive cleaning up system consists of brush, screw conveyor, abrasive blowing fan and lifting mechanism. This system can remove the steel shot left on the plate after blasting.
-
The material of brush is high strength polyamide nylon, it has enough elasticity to sweep the 95% abrasive accumulated on the steel plate into the screw conveyor.
-
High-pressure abrasive blowing fan blows off un-collected steel shot on the plate to brush. In this way, the whole system recycles all the abrasive from the steel plate.
-
The lifting mechanism can automatically adjust the height of the brush, screw and abrasive blowing fan according to the thickness of the steel plate, to meet the needs of the customer.
