Sandvik - Steel Rollers
Sandvik steel rollers are highly versatile. Different sealing elements and bearings determine which type is suitable for different conditions. With this selection Sandvik steel rollers meet customer requirements even in the most extreme conditions. Loadability of one roller is very much dependable on bearing and shaft diameter. More specific information concerning loadability is found in attached selection pages.
- Very effective labyrinth sealing prevents ingress of contaminants.
- Reliable deep grooved precision ball bearing greased for life and factory sealed.
- Maintenance-free.
- Smooth rotation, reduced vibration, long service life.
- Good operating economy.
- Built for tough working conditions and climate alternatives.
Available for all belt widths, every application and duties. Can be delivered with various tube thicknesses and end fittings. Equipped with bearing holders machined from solid or with deep drawn bearing holders.
Key specifications
- Roller diameter: 51-219 mm
- Shaft diameter: 17-40 mm
- Roller length: 100-3000 mm

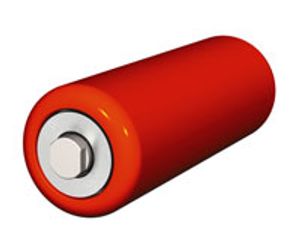

Sandvik HA100 series rollers` diameters range from 102 mm (4") to 194 mm (7 5/8") with bearing sizes from 6204 to 6310 to meet the local market requirements. HA120 series steel rollers for most bulk material handling applications, and HA130 machined and balanced low noise rollers with quiet operation thanks to good dynamic balancing and reduced vibration.

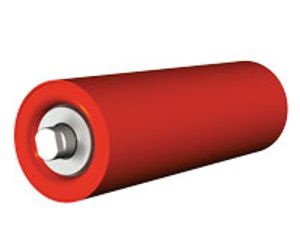

Sandvik HV120 series traditional type end cap steel roller diameters range from 102 mm (4") to 203 mm (8") and bearing sizes from 6204 to 6312.
Key specifications
- Roller diameter: 102-178 mm
- Shaft diameter: 22-56 mm

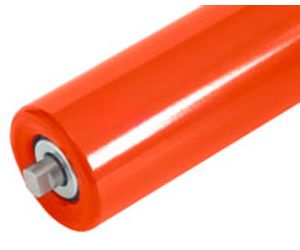

The HV140 roller is environmentally friendly thanks to the lower power requirement compared to a conveyor system with conventional rollers, which leads to decreased CO2 emission. Furthermore, the HV140 end-formed rollers’ reduced noise level brings added value to the working environment. Due to the high accuracy and quality in the production and assembly, initial bearing misalignment in these rollers is effectively diminished. The HV140 end-formed rollers can be supplied to exceed CEMA D, E and F standards and can be produced as carry-, return-rollers and garlands
Key specifications
- Roller diameter: 102-203 mm
- Shaft diameter: 42-62 mm
- Roller length: 250-2500 mm
