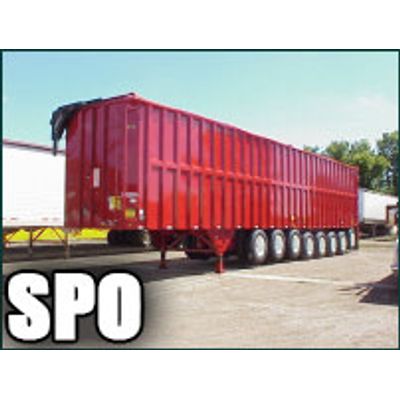

Wilkens - Model SPO -Steel Sheet & Post Open Top Walking Floor Trailer
Wilkens Load Runner Walking Floor, Open Top, Steel Sheet & Post Transfer Trailer. Capacity: 115 - 135 cubic yards.
Most popular related searches

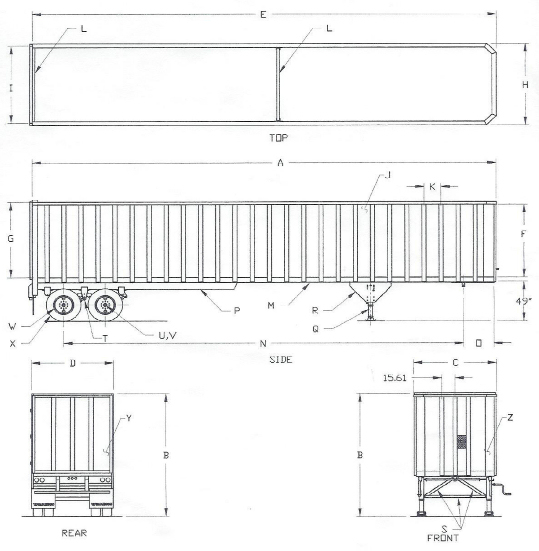

Outside Dimensions
- LENGTH: 45’- 53’
- HEIGHT: 13’6”
- WIDTH FRONT: 102”
- WIDTH REAR: 102”
Inside Dimensions
- LENGTH: 44’9” - 52’9”
- HEIGHT FRONT: 104”
- HEIGHT REAR: 104”
- WIDTH FRONT: 96”
- WIDTH REAR: 96”
Trailer Features
- SIDEWALL CENTERS: 12GA STEEL SHEET, 3” x 5” x 12GA VERTICLE POSTS 20” O/C
- TOP RAIL: 3” X 5”X 3/16” 50,000# YIELD STEEL TUBE
- SPREADER BAR: 3” X 3” X1/4” STEEL TUBE
- BOTTOM RAIL: 7GA FORMED STEEL TUBE
- KING PIN/LAST AXLE: 39’ - 47’
- KING PIN SETTING: 36” WITH 5/16” STEEL T-1 PLATE
- SUB-FRAME: 4” X 8” X 3/16” STEEL TUBE
- LANDING GEAR: HOLLAND MARK V, SELF LEVELING SHOE
- GEAR SUPPORT: 7GA
- GEAR BRACES: 3” CHANNEL
- SUSPENSION: HUTCH TANDEM 9700 SPRING, 48,000# CAPACITY
- AXLES & BRAKES CHAMBERS: (2) 5” ROUND, 25,000# AXLES, 4S2M ABS WITH TOP MOUNT CHAMBERS
- HUBS: 10 BOLT
- RIMS: STEEL DISC
- TIRES: 11R X 22.5, 14PLY
- REAR DOOR: CURBSIDE SWING, H.D. HINGES
- FRONT PANELS: 12GA SHEET & POSTS
- KING PIN SECTION: FABRICATED FROM ½” T-1 PLATE
- CROSSMEMBERS: 4” X 3.2# ON 12’ CENTERS, STEEL I-BEAM
- LIGHT SYSTEM: TRUCK LIGHT 40 SERIES, LIGHT IN DOOR
- COVER: ROLL TARP
- UNLOADING SYSTEM: KEITH RUNNING FLOOR II / HALLCO LIVE FLOOR
- FLOOR THICKNESS: CUSTOMER CHOICE
- LANDFILL EQUIPMENT: TOW HOOKS, PUSH BUMPERS
- METAL PREPARATION: EXTERIOR SANDBLASTED, EPOXY PRIMER
- PAINT: GRAY ENAMEL
- FRONT CORNERS: 10” DIAGONAL RADIUS
- WEIGHT: 21,000# - 23,800#
