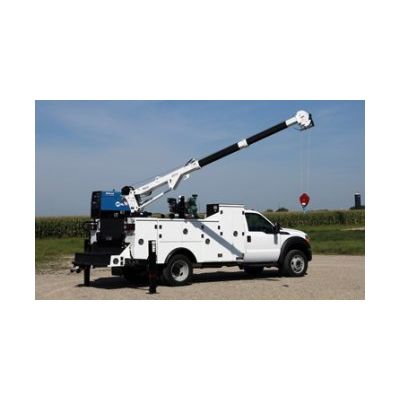

Stellar - Model 3315 -Telescopic Service Cranes
The 3315 electric/hydraulic crane was designed to meet the needs of public utilities, municipalities, water works, construction companies and any other situations requiring an electric/hydraulic crane in medium lifting range. This crane features a 11,500 foot/pound capacity and can lift a maximum of 3,200 pounds at three feet. Stellar Industries is the only U.S. manufacturer in this class of crane to offer several unique features. These include a planetary winch with a hydraulic/mechanical brake system. 30 feet per minute winch speed and hexagonal tubing boom construction.
Most popular related searches
municipal water
PTO pump
utility water
telescopic crane
public water
water municipality
hydraulic lifting
construction site water
water utility
- Crane Rating 11,500 ft-lb (1.59 tm)
- Standard Boom Length 7’ 0" (2.13 m) from CL of Crane
- 1st Stage Hydraulic 48" (121.9 cm)
- 2nd Stage Manual 48" (121.9 cm) / Optional hyd.
- Maximum Horizontal Reach 15’ (4.57 m) from CL of Crane
- Maximum Vertical Lift 17’ 8” (5.40 m) from Crane Base
- Stowed Height 31.2” (79.2 cm)
- Required Mounting Space 18” x 15” (45.7 x 38.1 cm)
- Approx. Crane Weight (Electric) 860 lbs (390 kg) / 940 lbs (Optional hyd.)
- Approx. Crane Weight (Hydraulic) 770 lbs (349 kg) / 850 lbs (Optional hyd.)
- Standard Controls Radio control standard for all functions.
- Rope Specs 1/4" (0.63 cm) 7X19 GAC X 65` (19.81 m)
- Boom Elevation -10º to +80º
- Line Pull Speed 30 ft/min (9.1 m/min)
- Maximum Single Part Line 1,600 lbs (725 kg)
- Maximum Double Part Line 3,200 lbs (1,450 kg)
- Rotation 370º Power
- Lifting Capacity 3,200 lbs @ 3’ 7" (1451 kg @ 1.10 m), 765 lbs @ 15’ (345 kg @ 4.6 m)
- Power Supply PTO & Pump: 3 gpm @ 2,600 psi (11.4 lpm @ 179 bar)
- Min. Rec. Chassis (GVRW) 10,500
