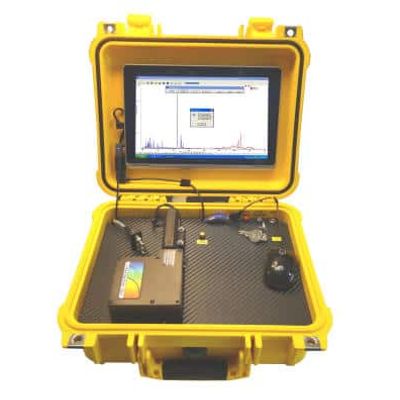

StellarCASE-LIBS - Portable Elemental Analyzer
Portable Laser Induced Breakdown Spectroscopy (LIBS) System. The StellarCASE-LIBS includes interior mounting of spectrometer instrumentation pre-configured with no additional setup required. Internal main power control system with ON, OFF, & Charge buttons and an 8 hour battery life for portable field applications. SpectraWiz-ID for real time qualitative elemental analysis. The system is completed with a safety key lock and an 8 hour battery lifetime for field use and portable application.
- The LIBS sample chamber mounts directly into the system’s acrylic mounting surface for direct easy access and includes a safety interlock.
- The systems excitation source is the world’s smallest 1064nm NDYaG laser with 25mJ per pulse. Once the laser strikes your sample a PLASMA is created which will cool and emit radiation specific to the elements inside your sample.
- The StellarCASE comes pre-configured with spectrometer instrumentation to covers 200-800nm with <0.2nm optical resolution. These spectrometers capture your samples emitted light spectrum and send the data to a top mounted tablet with factory installed SpectraWiz ID™ Software for elemental analysis.
- The StellarCASE features an internal main power control system with ON, OFF, & Charge buttons.
- The system is completed with a safety key lock and an 8 hour battery lifetime for field use and portable application and comes with AC power adapters for use in your laboratory or classroom.
- Industrial materials analysis
- Prospecting & Mining
- Environmental monitoring
- Homeland security measures
- Military chemical and biological agents
- Forensics analysis
- Pharmaceutical R&D
- Gemology and Counterfeit detection
- Nutrient Solution Ingredients of Metals Fe, Mn, Zn, Mg, K, P, N. etc..
Spectrometer channels: 3 standard (1 &2 channel optional)
Spectrometer ranges: 200-800nm wavelengths
Detector range: 2048 pixel CCD array
Laser Type: Pulsed Nd-YAG @1064um
Laser model & rep rate: Kigre MK-367. 1 Hertz
Laser lifetime: > 300,000 shots
Laser Power in: 350 mA @ 12 VDC
Case Dimensions: 6x11x13″
Data transfer speed: 1ms per second
Spectrometer Interface: USB2 Hub
Power to sample: 6 MegaWatts
Plasma chamber: 2x2x3″
Tablet Specs: Contact us
Operating systems: Win 8/10
