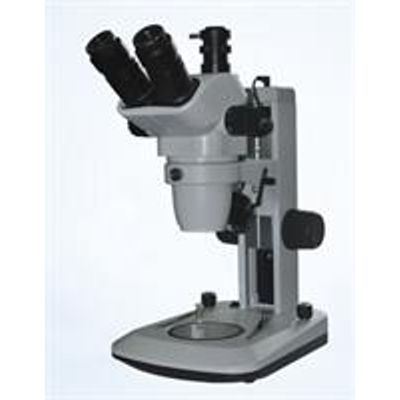

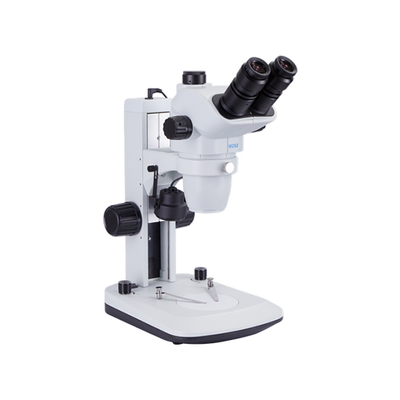

Micro-Shot - Model MZ62 -Stereo Microscope

MZ62 series zoom stereo microscope has high-quality optical system design, showing excellent resolution and true color, body and parts are ergonomic and durable. It has transmitted light and reflected light with LED illumination, the reflected lighting angle can be moved by user needs. High eyepoint eyepiece with ±5° adjustable is comfortable for long time observation, head support 50%/50% light division to achieve view image on PC and eyepiece synchronise. The microscope is ideal for high-precision 3D observation of stereoscopic objects such as electronic components, plant, insect, sand and other small objects, it is widely used for routine biomedical tests, scientific research and industrial inspections.

Focusing System:
The long working distance and large-travel focusing range reserve enough space for large-size samples; guide rail components: ensure accuracy and stability; the focusing handwheel is adjustable to maintain a good operating feel.

Trinocular observation head:
Ergonomically designed; can be observed simultaneously under the camera without switching back and forth; flexibly adapted to samples of different sizes.

Large field of view high eye point eyepieces:
Standard large-field eyepieces provide a flat and wide field of view to reduce eye fatigue; high eye point design allows observation without taking off glasses; adjustable diopter ensures synchronized clarity under binoculars.
