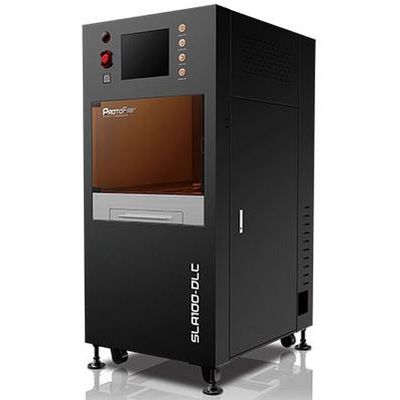

Compact Master ProtoFab - Model SLA 100 DLC -Stereolithography 3D Printer
FromDuch Group
Our most affordable SLA 3D printers with build sizes of 100 mm X 100 mm X 50 mm respectively. These compact sizes are ideal for printing prototypes in the medical, dental, toy and jewel manufacturing industries, and for small-size models used by scientific research institutions.
Most popular related searches
3D printer
solid-state laser
laser optical system
scientific research
laser optical
solids pump
solids pumping
- Fine Workmanship & Top Quality Components
Made of high-quality welded square tubes and 304 stainless steel for optimal stability to ensure precision and durability.
- Best Choice for Materials R&D
Ideal for resin material R&D and unprecedented space utilization for research facilities. The compact vat makes material refilling fast and convenient.
- Wide Choice of Materials
A selection of over 10 different custom-designed printing materials with unique characteristics for functional prototypes and low-volume manufacturing.
- Made-To-Measure Customization
We offer a considerable selection of customizations free of charge. Available upgrades include autofocus, automatic material refilling, environment sensors, as well as remote diagnostics and control, ensuring you are industry 4.0 ready.
- Build Size (xyz)1 100 x 100 x 50 mm (3.94 x 3.94x 1.97 in)
- Printing Speed 60-120g/h
- Scanning Speed 6.0m/s (Recommended) 10.0m/s (Maximum)
- Accuracy Part Size< 100 mm(3.9 in): ±0.1 mm(±0.004 in)
- Part Size≥ 100 mm(3.9 in):±0.1% x L
- Layer Thickness 0.1 mm (0.004 in)
- Laser Type Diode-pumped solid-state laser Nd:YVO4
- Optical System
- SCANLAB Germany Galvanometer Scanner
- Beam Size: 0.12 - 0.2 mm
- Operating Software Sirius Intelligent Printing Control Software / Linux or Windows (Optional)
- CAD Interface STL Format Files
- Machine Size W x D x H 850 x 1150 x 1800 mm (33.46 x 45.28 x 70.87 in)
- Ambient Temperature 22-25ºC (71.6-77℉)
- Relative Humidity Less than 40%
- Power Requirements 200-240VAC 50/60Hz Single Phase 16A
