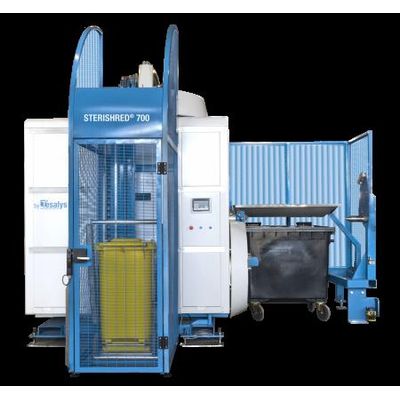

STERISHRED - Model 700 -Integrated Shredder- Sterilizer for Healthcare Waste
STERISHRED® 700 is an advanced solution to perform safe biomedical waste treatment which reduces risks, volume/weight and disposal costs. It treats infectious healthcare waste by pre-shredding followed by a non-burn thermal process (steam sterilization) at 135°C, in just minutes! Compact but with large treatment capacity (up to 100 kg/h), it can be used for either on-site treatment or in centralized outsourcing facilities.
Very high treatment capacity
The STERISHRED® 700 offers an on-site treatment capacity of 40 to 100 kg/hour.
Fully automated
Its loading and unloading system is fully automated.
For large structures
It is the ideal solution for structures producing high quantities of infectious waste and wishing to reduce their environmental impact by treating them on site.
TOTAL CYCLE TIME: Approx. 35 to 50 min depending on steam generator version and load humidity
LOADING CAPACITY (KG/CYCLE): 40 to 100 kg/cycle (Based on an average waste density of 0,08 to 0,12 kg/l)
TOTAL CYCLE TIME IN WORKING CONDITIONS (2): 50 to 60 min
TREATMENT CAPACITY (KG/H) (3): 40 to 100 kg/h (Based on an average waste density of 0,08 to 0,2 kg/l)
LOADING CHAMBER: Stainless steel
TREATMENT CHAMBER: 316L Stainless steel
STEAM GENERATOR: Stainless steel
WATER SOFTENER: Available as option
WATER BOOSTER PUMP: Available as option
WASTE SHREDDER: AISI 304L stainless steel (structure) Hardox® hard steel (blades)
PIPING: Stainless steel/PTFE flexible hosing
CHASSIS: Powder coated steel
BODYWORK: Stainless steel
CYCLE TRACEABILITY: Built-in printer
EXTERNAL DIMENSIONS: 4000 mm x 4045 mm x 3890 mm - As an option, unit can be disassembled in three parts
WATER
Needs: Water 4-8°TH
Consumption: Approx. 100 liters/cycle (20L machine + 80L steam generator)
ELECTRICITY
Needs: 380-400 V III N, 50 Hz, 80kW (other voltage / frequency available as option)
Consumption: 25 kWh / cycle
DRAIN: 2” Ø (heat resistant, floor level)
STEAM: Produced by the integrated steam generator, no external connection required
COMPRESSED AIR: Built-in, no external connection required
