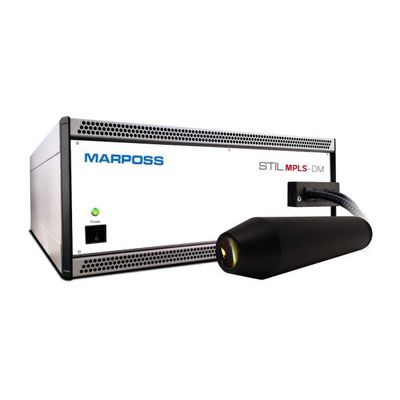

STIL - Model MPLS-DM Series -Non-Contact Measurement With Chromaline Sensor
With 180 measuring points aligned along a line ranging from 1 to 12 millimeters, the new MPLS-DM version enables high-quality inspection with new capabilities, and working frequencies up to 2kHz in standard mode, and even 6kHz with a reduced sensor measuring range.
Most popular related searches
- Versatile: measures any material capable of reflecting white light (e.g. metal, glass, plastic, paint films, liquids)
- Industrial thanks to its optical head made exclusively of passive components
- Up to 360,000 measured points/second allows to work in all industries in standard 2Klines/second
- More than 1 million points/second are acquired on dedicated applications at 6Klines / second
- Distance and thickness measurements
- High measurement accuracy
- Availability of SDK and protocol commands for easy integration into any system
- Synchronized measurement with encoder for dynamic acquisitions
- Ethernet communication
- Controller : MPLS-DM
- Technology : Chromatic Confocal
- Source : White LED
- Number of Points : 180
- Measuring Frequency : 200 Hz - 2000 Hz (up to 6000 Hz decreasing MR)
- Distance Measurement : Highest/First/Second/Third/Fourth/Last Peak
- Thickness Measurement : 2 of 5 peaks
- Digital Output : GigaEthernet
- Synchronization : Trigger in&out
- Other Input/Output : Encoder Input (1)
- Fiber Bundle Length : 5 m
- Temperature In Use : 5°C - 50°C
- Storage Temperature : -30°C - 70°C
- Relative Humidity : 5% - 80% HR without condensation
- Protection Type : IP20
- Compliance : EN 61010-1; EN 61326-1
- Power Supply : 100-240 Vac
- Maximum/Usual Consumption : 120 W/70 W
- Dimensions (mm) : 448,9 x 184 x 497
- Weight : 14,5 kg
