StillClean - Model SC 80/150 -Agitating Lift Solvent Parts Washer
FromStillClean

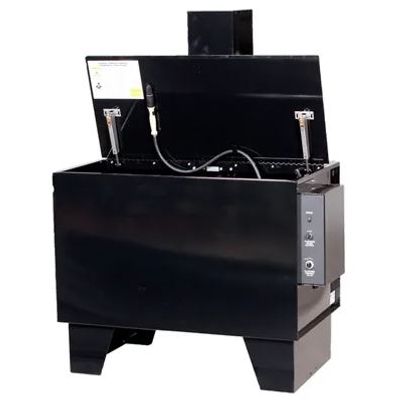

Agitating lift solvent parts washer. Equipped with flow-through brush. Heavy-duty automated lift platform rises out of the solvent for easy loading and unloading parts. For use with petroleum based solvents with a flash point over 104°F. Not to be used with chlorinated solvents.
Most popular related searches
parts washer
parts washing system
washer equipment
flash point
chlorinated solvent
dirty solvent
industrial tank agitator
chlorination
thickness monitoring
- Pre-set 120 psi filter regulator with auto drain
- Lift operates on 120 psi air pressure
- Flow-through hand held brush
- 12-gauge tank thickness
- Agitation speed adjustable from 0 to 160 agitations per minute
| CM 80 | CM 150 | |
| Overall Dimensions: | 52½” L x 34" W x 66½” H | 64" L x 44½” W x 69½” H |
| Inside Dimensions: | 44½” L x 27¼” W x 28" D | 57" L x 37¾” W x 29?” D |
| Carrier Dimensions: | 41½” L x 17½” W | 53½” L x 27½” W |
| Shipping Dimensions: | 56½” L x 36½” W x 56" H | 66" L x 48" W x 51" H |
| Shipping Weight: | 556 lbs. | 750 lbs. |
| Fluid capacity: | 80 gallons | 150 gallons |
| Maximum fluid depth: | 15¼” | 17¼” |
| Minimum fluid depth: | 9¼” | 9¼” |
| Load lift over: | 38" | 41" |
| Load capacity: | 250 lbs. | 750 lbs. |
| Lift Requirements: | 8CFM@120 PSI | 25CFM@120 PSI |
| Voltage: | 115V/60HZ/1PH/1 Amp | 115V/60HZ/1PH/1 Amp |
| Pump: | Fractional | Fractional |
