E. Bachiller B, S.A.
Bachiller - Stirred Reactors

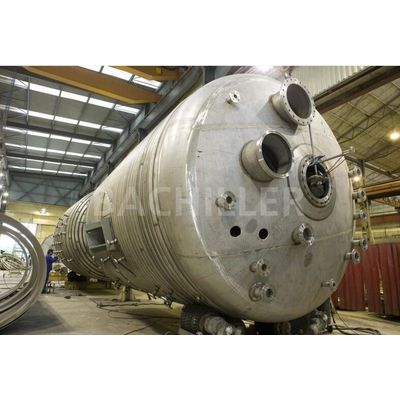

Bachiller designs and manufactures all types of stirred reactors in accordance with DIN or ASME regulations, with heating and cooling systems, custom-designed for the process.
Most popular related searches
cooling system
polymerization reaction
dosing system
pressure seal
laboratory homogenizer
safety regulations
autoclave
oxidation catalyst
aerator
agitator seal
- Design range from full vacuum up to 50 bar(g).
- Design temperature from – 50º C up to + 400º C.
- Designed for working in cycles.
- Heating / Cooling by a double jacket, half coils of dimple jacket.
- Internal coils or even heated baffles.
- Agitators are available with the axial flow, radial or combined double flow.
- Agitation in turbulent or laminar regimen, up to 2.000.000 cps.
- Installed powers up to 0.5 KW up to 300 KW.
- ‘CE’ marking according to the Safety for Machinery Directive 2006/42/CE.
- Internally mechanical polished, from Ra ≤ 1.2 µm up to Ra ≤ 0.2 µm.
- Internal electropolishing.
- CIP-SIP systems, validatable by means of Riboflavin test.
- Thermal insulation with stainless steel tight welded cover.
- Agitation systems with mechanical seals, single or double.
- Floating mechanical seal pressurized with nitrogen.
- ATEX execution officially certified for internal zone 0/20.
- Automatic systems for solids load and dosing.
- Weighting systems.
- Condensate and reflux systems.
- Vacuum systems.
Aerations y oxidations, Autoclaves, Boilers, Catalyst and enzyme processes, Concentration, Crystallization, Dispersions, Dissolutions, Distillation, Emulsions, Ethoxylation, Fermentation, Fusion, High viscosity, Homogenization, Hydrogenation, Light suspensions, Mixing of dissimilar liquids, Neutralization, Polymerization, Precipitation, Reaction, Suspensions, Thermal transfer.
