Stock - Model S6400 -Road Sweepers

• Sweep Path: Max 3,650mm. Sweep Speed: 2 to 16kph.
• CANbus Intelligent Sweep System: Operator-friendly electronic controls.

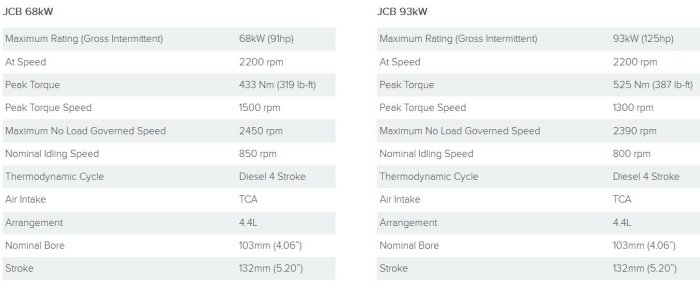

• JCB Auxiliary Engine: A choice of 68kW or 93kW stage 3b engines.
• Auxiliary Fuel Tank: 160 Litres.
• Clean Water Tank: 1600 Litres.
• Low Pressure Dust Suppression Water System: 35 litres/min at 3.5 bar (50 PSI).
• High Pressure Wash Water System: 30 litres/min at 150 bar (2200 PSI).
• Service intervals: 500 hours

• 6.5m3 Capacity
  Standard twin-discharge system comes with every Stock Sweeper. Should the auxiliary engine PTO (power take-off) fail, our equipment has its own independent electrical discharge system for additional use, if needed.
• Body, Cowl and Rear Door – Stainless Steel
  The body, cowl, and rear door are fully built with corrosion and abrasion-resistant stainless steel.
• 1600L of Clean Water
  1600L as standard, with optional 250L – 4000L additional water tanks available. *Chassis dependant.
• Double-Strength Subframe and Tipping Hinges
  We know our sweepers have to be robust, and critical to the stability of the vehicle is its subframe and tipping hinges. Twice the typical steel is used, to ensure maximum stability on uneven ground.

Side Brush

The side brush equipment is of a heavy-duty construction, and has brush speed control with ‘power-down’ ground pressure regulation fitted as standard. The ‘power-down’ feature enables the operator to scrub the road harder, to remove run-in and compacted dirt. The side brushes have fully adjustable sideways positioning and variable side brush rotation to ensure you sweep efficiently, even in awkward situations. The S6400 has an impressive overall sweep width of 3650mm and allows the S6400 to clean many roads in a single pass. At the push of a button, the kerb-top sweep function can be utilised in tight or difficult situations.

Wide Sweep Brush

The 400mm-diameter by 1300mm-long wide sweep brush has a fully adjustable ground pressure regulation system. The system is set on four regulators (two for left-hand sweeping and two for right-hand sweeping). This enables the operator to switch from left to right-hand sweeping operations without the need to leave the cab of the vehicle and readjust the brush. Fitted with ‘powerdown’ the wide sweep brushes performs efficiently on run-in and stubborn compacted dirt. The wide sweep brush canopy and guards are robustly constructed from 4mm powder-primed and powder-coated mild steel, ensuring maximum life expectancy.

Unique to our sweepers is our one-touch left-to-right sweep control system
