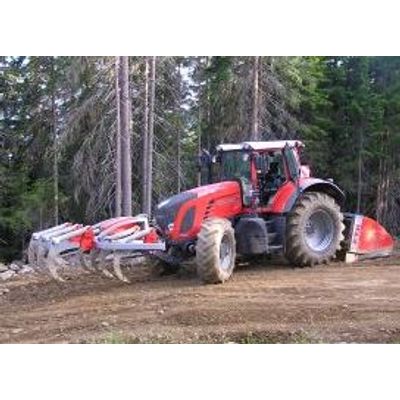

PTH - Model 2000 HD -Stone Breaker Crusher
We offer the PTH Crusher in several models - designed to suit your specific needs. For construction sites with hard rocks, such as granite and gneiss, we recommend the HD version of the PTH Crusher 2000 with the additional rotor wear protection - reflecting our vast experience. Thus, the PTH Crusher is equipped for the toughest applications. Its working width is 2 meters!
Most popular related searches
- Construction: Highly robust Crusher in whole-frame construction torsion-free and made of high-grade steels
- Drive: 12 high-performance V-belts on both sides
- Tare weight: 5650 kg
- Rotor mass: 1100 kg
- Working width: 2000 mm
- Working depth: max. 350 mm
- Power requirement: at least 220 hp
- Theoretical throughput capacity: up to a max. of 450 m³
- 1st crushing stage hydraulically adjustable: 10 - 70 mm, Replaceable internal wear and tear parts with a few simple steps
- Hydraulic lateral adjustment (only on 2000 HD)
- Carbide-tipped crusher strips
- Carbide-tipped special tools
- Rotor-armoured for extreme operations
- Second crushing stage on the cover
- Interior cladding of armoured plating 10 + 5 corresponds to 60 mm Hardox
- Lighting
- Built-in tool box
- Rotor front plate, carbide tipped
- Rotor and crushing chamber are fully armoured
