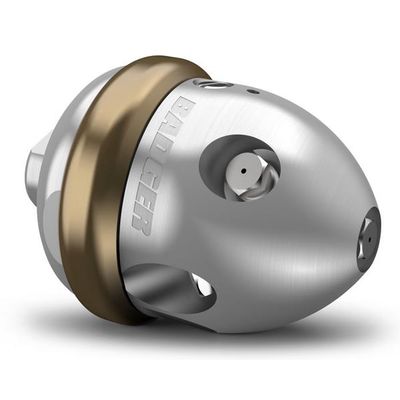

StoneAge - Model 4” Badger 15k psi/1000 bar -Self-Rotary Nozzle
FromStoneAge, Inc.
The 4" Badger is a compact self-rotary nozzle with adjustable speed control capable of navigating 90 degree elbows in pipes as small as 4" (102 mm) in diameter. The operator can adjust the controlled rotation speed by changing the viscous fluid.
Most popular related searches
- 5X longer runtime between maintenance intervals
- Redesigned braking system maintains consistent speed over longer duration
- Body shape allows for more effective navigation of bends and elbows and minimizes tool hangup during removal
- Different jetting configurations allow for more or less pull and forward hitting power
- Large flow range delivers more power or can pull more hose
- Designed to easily pair with the AutoBox ABX-500 hose tractor for hands-free pipe cleaning
- Length3.5 in.
- Weight3.0 lb
- Pressure Range5–15k psi / 344–1034 bar
- Flow Range13–27 gpm / 49–102 l/min
- Inlet Connection3/8" NPT (P6)
- Minimum Pipe Size4 in. / 102 mm
- Maximum Pipe Size8 in. / 203 mm
- Nozzle PlugGP 025-P2SS
- Diameter2.75 in.
- Max Pressure15k psi / 1034 bar
- Max. Water Temp160°F / 71°C
- Tool FamilyBadger
