Shelco Filters
Shelco MicroSentry - Model MS Series -String Wound Filter Cartridges
FromShelco Filters
Recognized as the industry standard for high quality wound filters – lasting 2-3 times longer than standard melt blown or spun bond cartridges. Computerized production machinery produces precise geometric patterns to ensure high efficiency, superior dirt-holding capacity and repeatable performance. Wide range of media and core materials to meet most temperature and chemical compatibility requirements. Available in 0.5 - 150 micron ratings. Ideal for removing solids from liquids, compressed air or gases. Independently tested to have the highest efficiencies in the industry.
Most popular related searches
wound filter
filter cartridge
string wound filter cartridge
resin bonded cartridge
wound filter cartridge
compressed air
polypropylene filter
polypropylene filter media
wastewater chemical
process water
- Precision winding patterns ensure accurate filtration ratings and high retention efficiencies
- State-of-the-art computerized production machinery eliminates product variability
- Various fibers and core materials for compatibility with a broad range of chemicals and high temperature applications
- Suitable for filtration of liquids, compressed air and gases
- Cost-effective and proven versus melt blown, spun-bond and resin-bonded cartridges
- Available in standard 2 1/2" and 4 1/2" (BB Style) cartridge diameter configurations and other
- Oils
- Air / Gas
- Petrochemicals
- Photo Solutions
- Magnetic Coatings
- Process Water
- Food & Beverage
- Solvents
- Pre-filtration
- Paint / Inks
- Water & Wastewater
- Chemicals
- Pore Sizes 0.5, 1, 3, 5, 10, 20, 25, 30, 50, 75, 100, 150 microns
- Nominal Lengths 4 3/4", 4 7/8", 9 3/4", 9 7/8", 10", 19 1/2", 20", 29 1/4", 30", 39", 40"
- Outside Diameters 2", 2 3/8", 2 1/2", 2 3/4", 4 1/2"
- Inside Diameter 1"

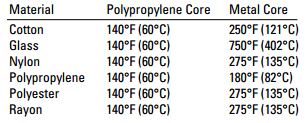

Materials of Construction
- Filter Media: Fibrillated Polypropylene FDA Polypropylene, Industrial Polypropylene, Natural Cotton, FDA Bleached Cotton,
Industrial Bleached Cotton, Polyester, Glass Fiber, Nylon, Rayon - Core: Polypropylene, 304 Stainless Steel, 316 Stainless Steel, Tin Steel
Recommended Change-out Differential Pressure
- 20 psid (1.4 bar)
FDA and USP Compliance
- FDA Bleached Cotton and FDA Polypropylene filters are manufactured of materials that comply with FDA requirements for food contact per CFR Title 21
