DongLi - Model GA104 -Strong Base Anion Exchange Resin

SHARE

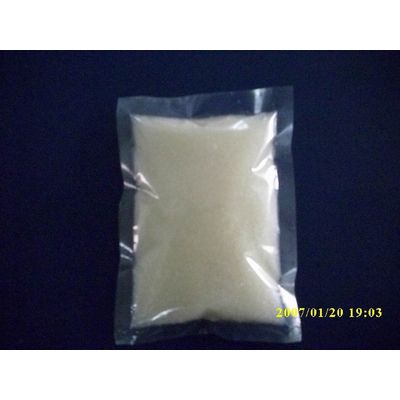

GA104 is a high capacity, shock resistant, gelular,Type I ,strongly basic anion exchange resin supplied in the chloride or hydroxide form as moist, tough, uniform, spherical beads. GA104 is intended for use in all type of deionization systems and chemical processing applications and is especially suited for use in regenerable mixed beds. it also shows good kinetics of exchange, enabling very low concentration levels of both strong and weak acid anions to be achieved at practical flowrates.
Most popular related searches
anion exchange resin
strong base anion exchange resin
anion exchange
base anion exchange resin
regenerable mixed bed
strong base exchange resin
strong base anion resin
mixed bed
particle sizing
deionization system
  • Typical physical & Chemical characteristics
  1. Polymer Matrix Structure: Styrene Crosslinked with DVB
  2. Physical Form and Appearance: Clear spherical beads
  3. Whole Bead Count: 95% min
  4. Functional Groups: R-N(CH3)3+
  5. Ionic Form ,as shipped: CL-

  6. Total Exchange Capacity, CL- form, wet, volumetric: 1.1 eq/l min

  7. Moisture Retention, CL- form: 50-60%
  8. Particle Size Range: 0.3-1.25mm
  9. Swelling CL-→ OH-:20-30%
  10. Shipping Weight (approx.): 660-710 g/l
  11. Specific Gravity, moist CL- Form: 1.08
  12. PH Range, Stability: 0 - 14

  • Suggested Operating Condition
  1. Maximum Temperature:  OH- Form: 60 °C (140oF) max

                                         CL- Form: 80 °C (176oF) max

  2. Minimum Bed Depth: 0.6m(24inches)

  3. Backwash Rate: 50 to 75% Bed Expansion

  4. Regenerant Concentration: 2 - 6%

  5. Regenerant Flow Rate: 2 to 8 BV/h (0.25 to 1.0gpm/cu/ft.)

  6. Regenerant Contact Time: At least 40 minutes

  7. Regenerant Level: 112 -300g/L (4 to 10 pounds/ cu/ft.)

  8. Displacement Rinse Rate: Same as Regenerant Flow Rate

  9. Displacement Rinse Volume: 10 to 15 gallons/cu.ft

  10. Fast Rinse Rate: Same as Service Flow Rate

  11. Fast Rinse Volume: 35 to 60 gallons/cu.ft

  12. Service Flow Rate: 10-25m/h (2 to 10 gpm/cu/ft.)
