GW Sprinkler ThermoCool - Structural Steel Protection Nozzle

SHARE

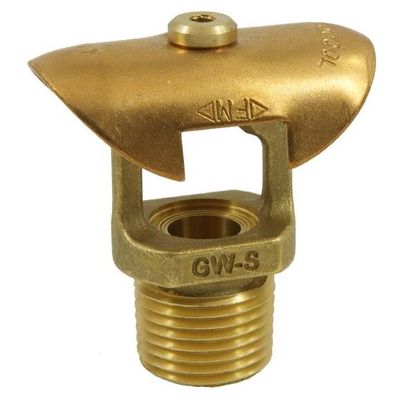

The GW Sprinkler ThermoCool nozzle is a reverse action open nozzle. It is designed for fire protection of structural steel in both horizontal and vertical positions, and the specially developed water distribution pattern provides protection (cooling) by direct impingement, without the excessive water wastage that is seen when conventional nozzles are used. The narrow “stand-off” distance from nozzle to target (min. 200mm) allows the GW ThermoCool nozzle to be installed in densely packed areas typically seen on offshore platforms, process areas and warehousing.

Most popular related searches
fire protection
heat protection
water distribution
produced water
water protection

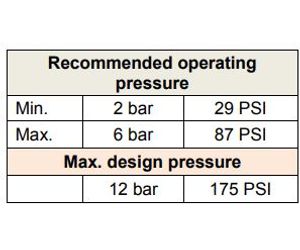

Although the Thermocool is used primarily for cooling of structural steel, it is equally well suited to provide exposure protection on other flat surfaces which must be isolated from the damaging effects of heat. The  ThermoCool produces a medium velocity water spray, which is fully developed in the operating pressure range of 2 to 6 bar. The nozzle can be operated at pressure up to 12 bar.

Fire & heat protection of structural steel girders - in both horizontal and vertical positions.

For applications where improved corrosion resistance is called for, the GW Thermocool nozzle can also be supplied in ENP (electroless nickel plated) brass – or stainless steel alloys: SS316 or SMO (6Mo).
