Cooldeck Industries Pvt. Ltd.

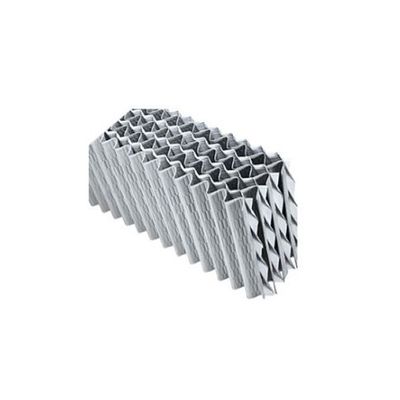

Cooldeck - Structured Bio Media
Featured with open flow type design, this Structured Bio Media is used for microorganism growth. Its standard sheet size is 1200 x 600 mm. Maximum recommended fill sheet dimension of this product is 1800 x 600. Designed by skilled personnel, this Structured Bio Media has 30 kg/m3 average dry weight. Its recommended minimum fill thickness is 0.3 mm. Maximum ,continuous operating temperature that this bio media can endure is 55 degree C. Its void age is more than 97%. This bio media needs to be covered with light colored cloth or it should be kept away from sunlight. This product is cost effective.
Most popular related searches
cooling tower application
cooling tower
water industry
industrial water technology
cooling system
industrial water
- Characteristics : Units
- Cooling Tower Application : CD-B27:33
- Range : Open Flow
- Height (mm) : 33 (V) &27 ( C)
- Application : TF/SAFF/Hybrid
- Longitudinal Pitch (mm) : 76
- Spiral Angle (degree) : 28
- Mixing Points : 3200
- Standard Sheet Size L X W (mm) : 1200 x 600
- Maximum Recommeded Fill Sheet Size L XW (mm) : 1800 x 600
- Surface Area/Unit Volume (m2 /m3) : 95
- Maximum Continuous Operating Temperature (0C) : 55
- Recommended Minimum Fill Thickness (mm) : 0.3/0.3
- Voidage : > 97 %
- Average Dry Weight (kg/m3) (varies with thickness : 30
- Storage : Must be covered with light colored cloth or stored away from Sunlight
