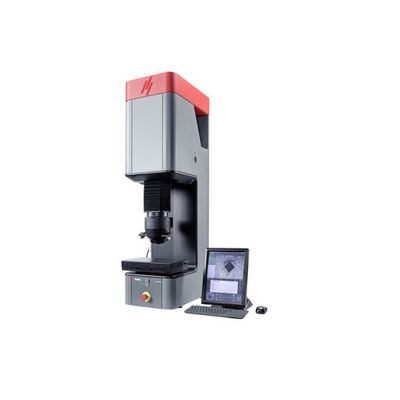

Struers - Model Duramin-650 -Semi-Automatic and Fully Automatic Universal Tester
Duramin-650 is the universal tester suited for laboratory use. Each model in the range has a motorized test head and turret, and is available either with a fixed anvil or with a motorized XY-stage and overview camera, primarily suitable for high volume testing. Duramin-650 is available in three load ranges.
- Methods: Vickers, Knoop, Brinell and Rockwell hardness testing
- Load ranges: 1-250 kgf, 3-750 kgf, 5-3000 kgf
- Motorized test head
- Motorized XY-stage
- Automatic illumination
- Anti-collision system
- Overview camera
- Laser positioning system
- Embedded PC, operated by mouse or touchscreen
Flexible testing
Due to the wide test load ranges possible, the Duramin-650 is suitable for many different applications that previously needed several individual macro indentation hardness testers.
Reliable precision
Based on load cell technology, the Duramin-650 conforms to all standards while offering excellent accuracy and repeatability throughout the entire load range.
High capacity
Duramin-650 is optionally available with a motorized XY-stage for fully automatic testing of test series.
- Stable testing conditions
- Perfect working height
- Automatic protection
- Automatic exchange of indenter and lens
- Optional test point editor
- Software modules for specific needs
- Accuracy during load application
