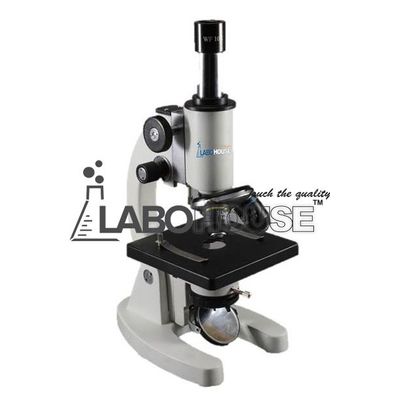

Labohouse - Model LHM 9 -Student Microscope with Moveable Condenser

SHARE

STAND : Monocular, frame inclines back to 90′. VIEWING BODY : Monocular tube, Straight. EYEPIECES : Huygenian eyepiece 1 Ox.
NOSEPIECE : Quadruple/Triple revolving nosepiece with accurate centering and positive click stops.

Most popular related searches
rack and pinion
dust cover
microscopy
dust cleaning
monocular microscope
  • OBJECTIVES : SA series Achromatic objectives 10x/ NA 0.25 &40x/ NA 0.65 (SL) Optional 4x/NA  0.10
  • WORKING STAGE : Stage plate size 120x 120mm with Stage Clips
  • FOCUSING SYSTEM : Separate coarse and fine focus controls . Coarse movement by Rack & Pinion and fine movement by Screw Lever       Mechanism
  • CONDENSER : Sub-stage Iris diaphragm with moving up and down through rack and pinion, condenser NA 1.25 with Blue Filter
  • ILLUMINATION : Piano concave reflector mirror mounted at the base
  • PACKING : Thermocole Box xd with operation manual, dust cover and cleaning cloth
