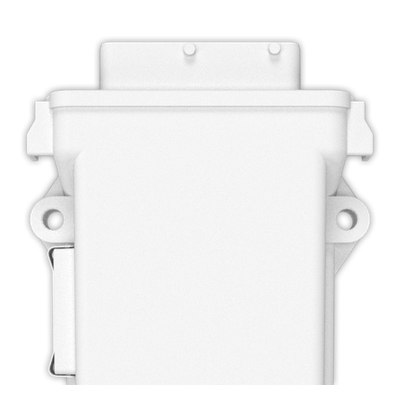

STW Technic - Model TCG-4lite -Streamlined for Essential Telematics Applications
Develop simple telematics applications on a cost-effective hardware platform that still connects your machines to the essentials.
Out-of-the-box control over the hardware
Our revolutionary Telematics Application Framework is designed to turbocharge your software development process. With our comprehensive set of readily available utilities, you can now create cutting-edge applications faster and more efficiently than ever before. Say goodbye to starting from scratch and build upon a solid foundation instead.
- Network manager utility
- Edge calculations utility
- GPS utility
Our revolutionary Telematics Application Framework is designed to turbocharge your software development process. With our comprehensive set of readily available utilities, you can now create cutting-edge applications faster and more efficiently than ever before. Say goodbye to starting from scratch and build upon a solid foundation instead.
Network manager utility
Edge calculations utility
GPS utility
4G LTE Cellular Network Operation
TCG-4lite is ready to connect to virtually any 4G LTE network. Across the globe, it has been certified to connect to other 4G LTE networks using the removable SIM card. See below for a list of all available countries.
- Uses 4G LTE across the US
- Certified for 4G worldwide
- Direct integration with Reach Asset Manager
Operation System
Embedded Linux
Linux Kernel Version
5.4
Power supply
9...32 V DC
Current Consumption
Standby < 1 mA (@12 V)
Sleep (SMS wakeup) ~ 35 mA (@12 V)
Normal operations (typ.) 230 mA (@12 V)
Dimensions (L x W x H)
183 x 117.4 x 36 mm
Connector
Tyco, 3 rows, female 29pin
Processor
NXP i.MX 6UltraLite @ 696 MHz
RAM
512 MB DDR3L-SDRAM
EEPROM
64 kB
eMMC Memory
8 GB (4 GB reserved for system)
Watchdog
Configurable
Antenna Accessories
View Recommended
