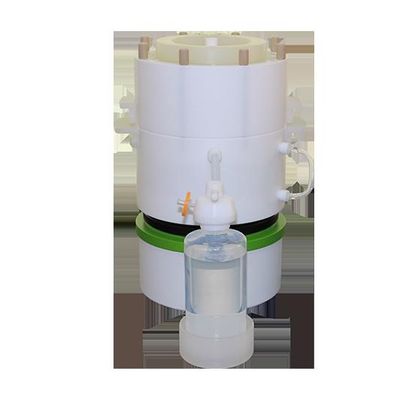

PreeKem - Model S1 -Sub-boiling Acid Purifier
S1 Sub-boiling Acid Purifier adopts classic sub-boiling distillation approach and works to achieve a dynamically delicate balance between automatic control of heat convection and acid vaporization. The instrument control is designed to enable intelligent operating and handling of any task, making even an unmanned acid purification session possible in the fume hood. The device is constructed with absolutely zero quartz or metal parts, entirely eliminating the occurrence of corrosion and outside contamination from happening.
Most popular related searches
- Enhanced safety insurance to protect the instrument operation
- 3D surrounding heating to improve energy utilization
- Raw acid is injected from the bottom via specially designed delivery channel to reduce length of passage and eliminate contamination
- Optimized geometry of cooling chamber provides a efficient condensation and achieves a higer yield.
- Dimension : 361mm×360mm×400mm
- Heating power : 300W
- Max. heating temperaure : 200?
- Heating mode : ?????
- Cooling mode : ??????
- Feed capacity : 0.5L—2L
- Production rate (24h) : HNO3 1.8L;HCL 1.6 L;HF 1.5 L; H2O 2.0 L
- Receiving vessel : 500mL
- Distillation rat : 1.25mL/min
