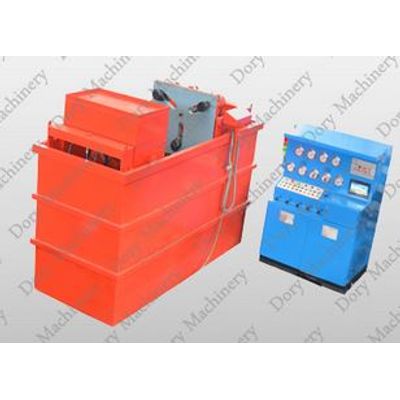

Dory - Model YFJ-BQ -Submerged Valve Test Bench with Water Tank
Equiped with Low Pressure Pump/High Pressure Pump Hydraulic Systsem,Electrical Control System.
Most popular related searches
water tank
valve testing
high-pressure pump
stainless steel tube
data acquisition system
control valve
globe check valve
ball check valve
blind flange
plug valve
- Valve Types: Gate/Globe/Check/Ball/Plug Valves etc
- Size Range: 2``-12`` DN50-DN300
- Pressure Range: Class 150-Class1500
- Valve End Type: Flanged RF/RTJ
- Designed to test Gate,Globe,Check,Ball and Control Valves
- Size range: 2’’-12’’ DN50-DN300
- Pressure range: Class 150-Class2500 PN16-PN420 ( Pressure to be confirmed as different customers require different pressure , customization services available )
- Hydraulic Clamping system with three jaws, by means of clamping flanges with blind flange adaptors ensure the positive seals of the valve flanges.
- Left work table is movable,With big water tank,Whole test bench submerged into water tank
- Right work table with 90° rotating function,easy for air low pressure closure testing
- Stainless steel tubes and pipelines available
- With interlock functions for safety
- Testing fluid by water or air ,water with a corrosion inhibitor, according to international valve testing& Inspection standard like API598, API6D,MSS-SP-70,ASME B16.34,MSS SP-85,FCI 70-2 etc
- Recycle water tanks
- Air driven liquid booster pump(Maximator or Haskel)
- Data acquisition system is available, including PLC,Touch screen, Printer,with test graphs & reports.
