Chao Sensor - Model CC-L03 -Submerged Water Level Sensors

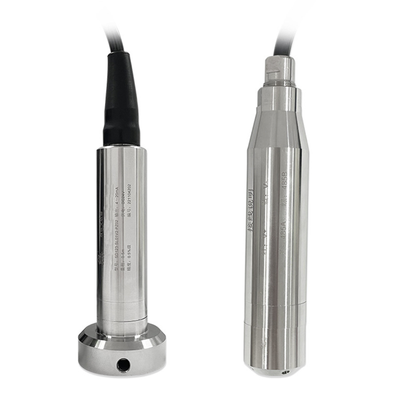

CC-L03 submersible liquid level transmitter is mainly composed of imported load cell sensor, measurement circuit and process connection. It can convert the pressure signal parameters felt by the load cell into standard current and voltage signals. When the sensor is put into a certain depth in the measured liquid, the pressure of the measured medium is introduced into the positive pressure cavity of the sensor, and the atmospheric pressure Po on the liquid surface is connected to the negative pressure cavity of the sensor through the cable guide tube to offset the positive pressure of the sensor. Po, so that the sensor can measure the pressure , and by measuring the pressure, the depth of the liquid level can be obtained .

CC-L03 submersible liquid level transmitter plays the role of protecting the sensor diaphragm, and can also make the liquid contact the diaphragm smoothly. Anti-condensation design. Built-in miniature signal processing circuit for remote transmission. Has good stability and reliability.

It can be widely used in liquid level measurement and control in water plants, sewage treatment plants, urban water supply, high-rise pools, water wells, geothermal wells, mines, industrial pools, oil pools, hydrogeology, reservoirs, rivers, oceans and other fields.

• Reverse polarity protection and instantaneous overcurrent and overvoltage protection, in line with EMI protection requirements;
• It can be automatically compensated for temperature and automatically corrected for temperature drift;
• Adopt high-quality air-conducting cable, which can be immersed in water all the year round;
• Strong overload and anti-interference ability, economical, practical and stable;
• Adopt core automatic correction algorithm, which can effectively prevent numerical fluctuations caused by water surface fluctuations;
• Slope type liquid guide hole can effectively prevent the entry of sludge and impurities, and can also prevent impact.

• Measuring range : 0-500m (optional)
• measurement accuracy : Default：0.2%FS, customized：0.1%FS
• output signal : 4-20mA, 0-5V, 0-10V,RS485
• overload capacity : <1.5 times the range
• temperature drift : 0.03%FS/℃
• Power supply : 12-36VDC typical 24V
• medium temperature : - 10~50 ℃
• Measuring medium : Non-corrosive oil, water, etc. to stainless steel
• Protection class : IP68
• load capacity : Current with load capacity : ≤500Ω
• Voltage output resistance : ≤510Ω
• Probe diameter : D28mm
• Probe materials : SS304,SS316,SS316L
