KSB - Model UPA -Submersible Borehole Pumps

Submersible borehole pumps of the UPA series have been designed for maintenance-free long-term operation. Even under difficult conditions, for example fluids containing sand, the wear-resistant materials ensure optimum operation. The motor is perfectly matched to the pump.

The maintenance-free submersible borehole pumps come in a favorable design. Being particularly slim, they are well-suited to installation in:

• Wells
• Discharge tubes
• Water tanks

They can also be installed directly in rivers and lakes.

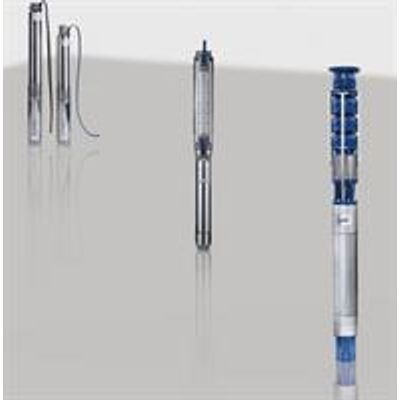

Overview of the UPA seriesUPA 100C for well diameters of 100 millimeters (4 inches) and above

• Corrosion- and wear-resistant
• Environment-friendly
• Approved for drinking water

S 100D – 4-inch submersible borehole pump

• Extra-slim design
• Ideal for private use
• Conforms to one of the most stringent drinking water regulations in Europe: the French ACS

UPA for well diameters of 200 millimeters (8 inches) and above

• Trouble-free long-term operation
• Long motor lives
• High operating reliability and long service life
• Proven thrust bearing

UPZ – submersible borehole pump for top performance under harshest conditions

• Top performance of electric motors which are fully immersed in the fluid handled
• Ideal for pumping water from deep wells
• Wear-resistant

KSB also offers its maintenance-free UPA submersible borehole pumps as part of an all-in solution of perfectly matched components.

SET 100 — the spray irrigation set

SET 100 comes ready to install. It is available with either of the following two pump models:

• The S 100D submersible borehole pump for private use
• The robust UPA 100C for professional operators

Both pumps can be installed in vertical or horizontal position.

The irrigation set also includes:

• Starting device with motor protection switch and run capacitor
• 30 meter submersible cable with plug
• Controlmatic E automatic control unit with 1.5 meter cable and plug for pump monitoring and control
