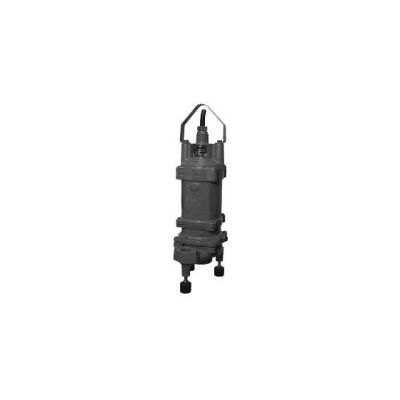

EBARA - Model EBG & EBHG -Submersible Cast Iron Grinder Pump

FromEBARA Pumps Americas Corporation (EPAC)

SHARE

The model EBG, EBHG submersible grinder pump series handle residential or light commercial sanitary waste in pressurized sewer systems. The heavy-duty, high chrome iron grinder system has powerful blades that reduce solid sizes to a fine slurry for smooth, non-clogging flow. The pump is small and lightweight affording ease in transport and ideal for use in temporary installations.

Most popular related searches

submersible grinder pump

cast iron grinder pump

submersible grinder

pressure sewer system

submersible pump

sewage transfer

cast iron submersible pump

Discharge Size: 1 1/4″ NPT, 2 1/2″, 3″ ANSI
Range of HP: 2 to 10 HP
Capacity: 20 to 180 GPM
Head: 8 to 170 Ft.
Max. liquid temperature: 120°F (49°C) [140°F (60°C) intermittent]

Casing – durable cast iron ASTM A-48, Class 30
Heavy-duty hardened stainless steel grinder system – powerful blades create a fine slurry for non-clogging flow and provide trouble free, dependable operation
Open vortex type recessed impeller – vortex action prevents clogging and handles stringy material better providing durability, high reliability with lower maintenance costs
Oil filled, Class F insulated heavy-duty motor – operates cooler with higher efficiencies
Built-in motor protection – protects against overheat, out of phase, single phasing and no load
50,000 hour bearings – provides long dependable operation and lowers maintenance costs
Double mechanical seals – provide longer service life and lower maintenance costs
Stainless steel shaft – high tensile strength and corrosion resistance
Small and lightweight – easy portability
High head option available
Economical alternative for challenging residential/commercial installations

Residential/Commercial sanitary waste
Small scale pressurized sewage transfer systems
Drainage transfer
