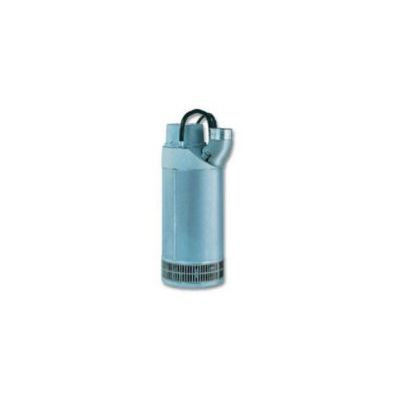

WEDA PUMP - Model RL 4150 -Submersible Drainage Pump
The RL4150 submersible drainage pump from WEDA is engineered for rigorous industrial tasks, providing a high capacity of 3,000 liters per minute and adaptable for variable site conditions through its interchangeable impeller options. Its configuration allows for straightforward installation and automatic operation, featuring an integrated NVB electronic level control. Key design components include oil-lubricated mechanical seals, paired silicon carbide seals for both pump and motor, and a robust pump bearing running in oil. The apparatus is capable of discharging up to 14 meters, with its construction optimized for durability with high-temperature grease against corrosion in the top bearing. Suitable for different power configurations, including 220-240V and 380-415V, this model supports custom adaptations for broader voltage applications.
- Capacity: 3.000 l/m / 180 m3/hr
- Discharge: 14.0 m / 46 ft.
- Connection: 3"/4n
- Weight: 55 kg.
- The mechanical seals are oil lubricated.
- The pump seal consists of two silicon carbide seals against each other.
- The motor seal of two silicon carbide seals against each other.
- The pump bearing consists in a deep groove single ball bearing, running in oil.
- The top bearing is greased for life with high temperature grease and anti-corrosion additive.
