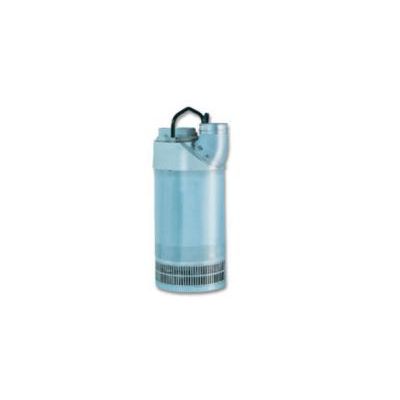

WEDA PUMP - Model RL 6090 -Submersible Drainage Pump

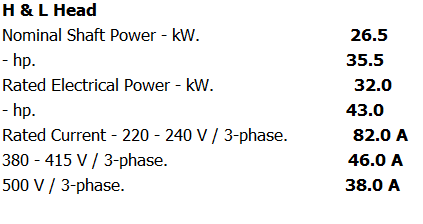

The WEDA RL6090 is a robust submersible pump designed for challenging heavy-duty applications, delivering a high flow capacity of up to 6,300 liters per minute and reaching a maximum total head of 85 meters of liquid column. It features a standard-over current relay and supports a delayed start to protect the motor. Available with optional delta/star starter integration, it ensures customization for various operational needs. Its mechanical seals are oil-lubricated, employing a tungsten carbide and ceramic seal for the pump seal, while the motor is safeguarded by a carbon and ceramic seal. The double opposed angular ball bearings in oil enhance durability, with the top bearing having a lifetime grease. Weighing 180 kg, it supports discharge connections between 4 and 6 inches and demands a rated electrical power of 32 kW or 43 hp. Rated currents vary based on voltage, requiring 82.0 A at 220-240V, decreasing to 38.0 A at 500V.
