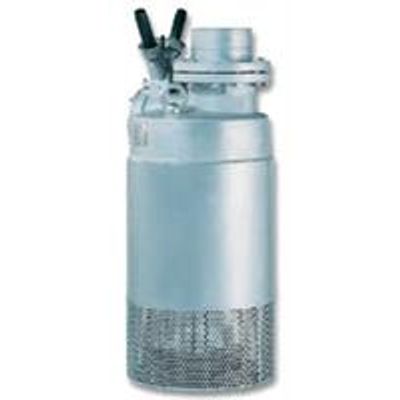

WEDA PUMP - Model RL 8010 -Submersible Drainage Pump

SHARE

The RL8010 is WEDA PUMP`s biggest model in our range of submersible pumps. It is used when really big volumes of water have to be moved (as much as 19.000 Ltr./min.). This model is equipped with a 4-pole motor (1450 r.p.m. instead of 3.000 for all other models). It does not have a built-in starter, but, in order to meet end-users` requirements worldwide, WEDA PUMP can supply starter boxes as external equipment according to customers` required configuration. Being our "Jumbo" model, the RL8010 has nevertheless been designed with service-friendlyness in mind.

Most popular related searches
submersible pump
submersible drainage pump
tungsten carbide
submersible drainage
drainage pumping
drainage pump
  • Capacity: 19.000 l/m / 1140 m3/hr
  • Discharge: 42.5 m  / 139 ft.
  • Connection:  10"
  • Weight:  510 kg.
  • The mechanical seals are oil lubricated.
  • The pump seal consists of a tungsten carbide and ceramic seal against each other.
  • The motor seal of a carbon and ceramic seal against each other.
  • The pump bearing consists in two opposed angular ball bearings, running in oil.
  • The top bearing is greased for life with high temperature grease and anti-corrosion additive.
