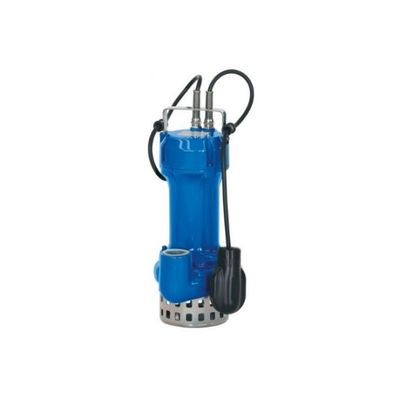

Speroni - Model ECM-D Series -Submersible Drainage Pumps
FromSperoni Spa
Submersible drainage pumps with plunged open impeller with grid. Suitable for clean waters, even with small suspended solids, for drainage of flowing and collection rain waters.
Most popular related searches
submersible drainage pump
submersible drainage
drainage pumping
drainage pump
submersible pump
strainer filter
rainwater
stainless steel strainer
steel strainer
water suspended solids
- IMITS OF USE
- Liquid temperature up to 35°C (for home use according to EN 60335-2-41) Temperature max. liquid: 35°C (for other uses)
- Maximum immersion depth 20 mt. (with a cable of the appropriate length)
- Grain size inlet Ø 10 mm
- Min. suction level 100 mm
- Continuous duty
- ENGINE
- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz
- Insulation Class F
- Protection IP 68
- Thermic protection (only single-phase)
- MATERIALS
- Motor body: Cast Iron
- Pump body: Cast Iron
- Impeller: Cast Iron
- Shaft with rotor: Stainless Steel AISI 304
- Suction strainer: Stainless Steel AISI 304
- Mechanical seal with oil chamber: Silicon/Silicon/NBR
