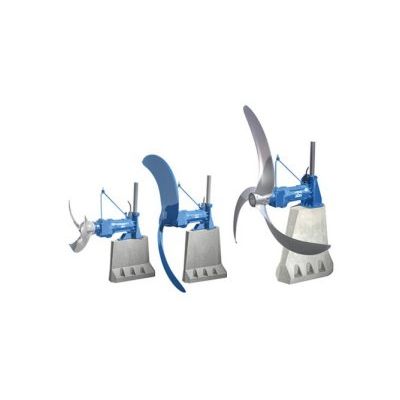

Sulzer ABS - Model Type XSB 900 to 2750 -Submersible Flow Booster

• This slow-running submersible unit is available with integral IE3 premium-efficiency motors ranging from 1.0 to 7.5 kW (7.4 to 10.1 hp) for gentle circulation and mixing of fluids in wastewater treatment plants and industrial applications.
• Propellers for the XSB are designed for easy transport and installation. Most models are mounted complete, while the larger 3-blade models have a special design that allows them to be attached bladeby-blade. This facilitates transport and
  eliminates the need for special tools.
• The unit is connected to a concrete pedestal by an innovative coupling system which allows the unit to be raised and lowered for inspection even in filled tanks. The pedestal absorbs all dangerous vibrations, thus giving a long service life both for the machine and the installation.

Main Benefits

• Lowest energy consumption
• Compact, water pressure-tight design
• Provides high thrust and high flow capacity
• Self-cleaning propellers provides vibration-free operation
• Increased performance variations with an extended and wide duty range
• Superior Reliability and long operating life

Main Applications

• Providing a flow pattern in large tanks and open waters for mixing and stirring
• Wastewater treatment plants and industrial applications

Main Design Features

• Patented concrete pedestal, designed to efficiently absorb vibration
• Fully-lockable coupling system
• Premium-efficiency IE3 motors
• Mechanical seal protected by a solids deflection ring
• Seal monitoring using multiple sensors
• Thermo-Control System (TCS) provides timely warnings and auto switch-off
