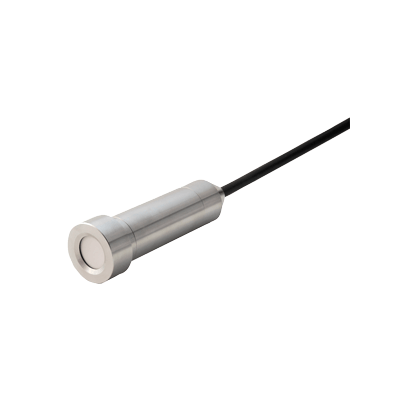

Kiay - Model HydroCer -Submersible Level-Transmitter with Ceramic Measuring Cell

• Strong ceramic measuring cell
• Temperature compensation
• Perfect long term stability

• Measuring range min. max.:  0,1…2 bar, fixed range
• Process  temperature:  -10 °C…+70 °C
• Accuracy:  0,2 % of adjusted span
• Process connections:  Cable hanger, mounting bracket, threaded and flanged connections
• Output:  4-20 mA 2-wire
• Power supply:  12 - 36 Vdc
• Protection:  IP68
• Diaphragm material:  Capacitive ceramic measuring cell
• Sensor housing:  AISI 316L
• Sensor sealing:  Viton O-ring
• Cable material:  Polyethylene, option Hytrel or PTFE

Level measurement of drinking water, surface water, wastewater and sludge. Often used by water boards and water works. Various industrial applications like level measurement in storage tanks. Level measurement of ballast water, drinking water and oil on ships.

• Cable hanger
• Junction boxes
