Wilo - Model TR 212 - TR(E) 326 - ...

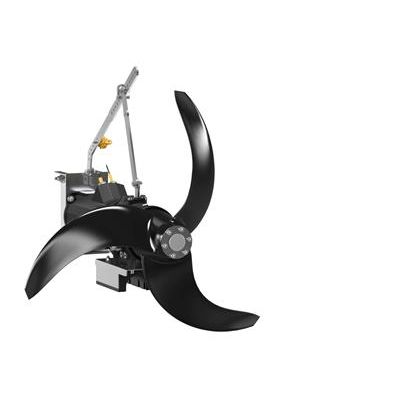

Wilo - Model TR 212 - TR(E) 326 -Submersible Mixers

FromWilo USA LLC

SHARE

Slow-running submersible mixer with two-stage planetary gear. Flexible installation. 2-stage planetary gear for adjusting the propeller speed. Self-cleaning propeller. Propeller blades can be replaced individually. Easy-to-install blades and hub. ATEX and FM versions.

Most popular related searches

submersible mixer

planetary gearing

water management

oxidation ditch

activated sludge

industrial water

Mixing and circulation of activated sludge
Flow generation in water channels
Industry
Oxidation Ditches

Thrust: 406 - 976 lbf (470 - 4340 N)

Submerged operating mode: S1 (continuous duty)
Max Temp: 104°F (40°C)
Protection class: IP 68
Two-stage planetary gear with exchangeable second planetary stage
Permanently lubricated anti-friction bearing
Power connection: 3~460 V, 60 Hz

GFK Propeller
Stainless Steel Gear Shaft
SiC/SiC Combination Mechanical Seal
