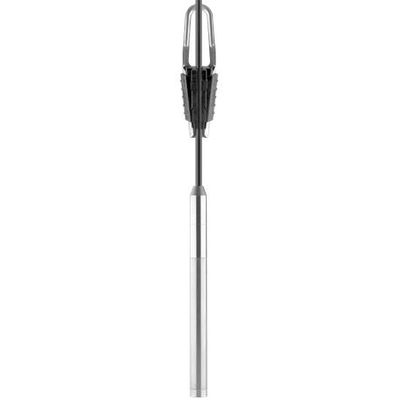

VEGAWELL - Model 52 -Submersible Pressure Transmitter with Ceramic Measuring Cell
With ceramic measuring cell. Application area: The hydrostatic absolute pressure transmitter with ceramic measuring cell is ideal for level measurement of water/wastewater, as well as level measurement in deep wells or in tanks on ships. Maximum cable length = 1000 m. The VEGAWELL 52 is suitable for continuous level measurement of liquids. Typical applications are measurements in water/waste water, deep wells and in the shipbuilding industry.
- High plant availability through integrated overvoltage protection
- High reliability through maximum overload and vacuum resistance of the ceramic measuring cell
- Versatile use through robust housing and cable design
The hydrostatic absolute pressure transmitter VEGAWELL 52 with ceramic measuring cell is ideal for level measurement of water/wastewater in the water industry or in tanks on ships.
The hydrostatic absolute pressure transmitter with ceramic measuring cell for continuous level measurement for monitoring and control tasks, e.g.
- flow measurement i.e. overflow measurement on weirs
- water level measurement for control of groundwater pumps
- level measurement in ballast water tanks on ships
- level measurement in oil tanks

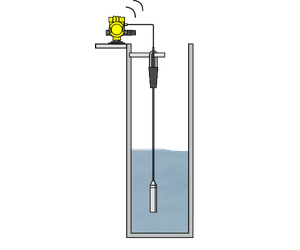

Level measurement in the stormwater overflow chamber
To the applicationLevel measurement in the sewage lifting station
To the applicationWater treatment
To the application
- Measuring range - Pressure: 0 ... 60 bar [Bar - kPa - psi]
- Process temperature: -20 ... 80 °C [°C - °F]
- Process pressure: - [Bar - kPa - psi]
- Accuracy: 0.1 %
- Materials, wetted parts:
- PVDF
- 316L
- Duplex (1.4462)
- FEP
- PE
- 1.4301
- Titanium
- Seal material
- EPDM
- FKM
- FFKM
- Protection rating
- IP66/IP67
- IP68
- Output
- 4 … 20 mA
- 4 … 20 mA/HART - two-wire
- Ambient temperature: -40 ... 80 °C
Approvals
- Scope
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- IEC / worldwide
- UKR Sepro / Ukraine
- INMETRO / Brazil
- Explosion protection
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- Foodstuffs/Pharma: Drinking water
- Ship approval
- ABS
- BV
- CCS
- DNV
- GL
- LR
- RINA
- Overfill protection: WHG
- Display & adjustment
- Adjustment
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Indication: VEGADIS 82
