IFF - Model XB4-S -Submersible Probe for Measuring the Amount of Dissolved Oxygen In Water

FromIFFMan - a brand of GRYF HB

SHARE

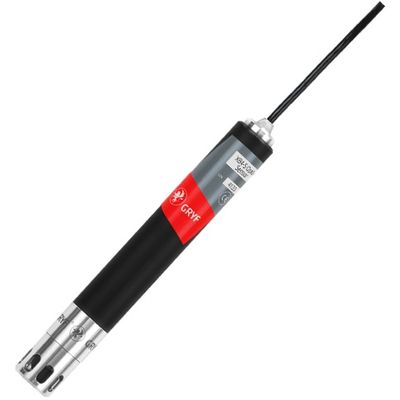

Effective and easy measurement at fish farms. This probe consists of a stainless-steel head with the option of a replaceable sensor (CAP), a body with integrated electronics and a durable cable. Optical oxygen probes are distinguished by their extremely long service-life with minimum calibration requirements. The silicone membrane means that XB4-S probes also have much higher reaction-capabilities than competitive probes with Teflon elements.

Most popular related searches

dissolved oxygen in water

temperature monitoring

oxygen concentrator

oxygen monitoring

temperature sensor

salt water monitoring

water column temperature

water monitoring

The XB4-S probe is crucial from the aspect of energy savings linked to operation of the bellows and aeration of the tanks. This type of measurement ensures the optimum concentration of dissolved oxygen in the water depending on the species of fish being farmed.

Highly-durable sheath intended for fresh water and salt water application
Measurements taken independently of water currents around the sensor
Robust and easily removed sensor – CAP
Minimum operating costs
Not sensitive to the presence of H2S or CO2 gas

Power supply: external source 18 ÷ 35V DC/ 30 mA
Signal output: 4 ÷ 20 mA
Oxygen concentration measuring range: 0,0 ÷ 200,0 %, 0,00 ÷ 20,00 mg/l
Oxygen concentration measuring accuracy: 1 % of range; ± 1dig.
Response Time T98%: < 60 s
Temperature compensation: automatic 0 ÷ 50 °C
Temperature measuring range: 0 ÷ 50 °C
Temperature measurement accuracy: ± 0,2 °C; ± 1dig.
Temperature sensor: Ni 1000
Measurement principle: oxygen dependent luminescence quenching
Protection rating: IP 68
Pressure range: 0 to 3,5 bar (0 ÷ 35 m water column)
Operating temperature range: 0 ÷ 50 °C
Storage temperature range: -20 ÷ 70 °C
Dimensions (probe): 270 x 36 mm
Dimensions (box): 320 x 200 x 75 mm
Material: stainless steel 1,4404, PVC-U black, PUR (cable)
Weight (probe + 10m cable): 1,7 kg
Oxygen consumption: none
Required flow: none
