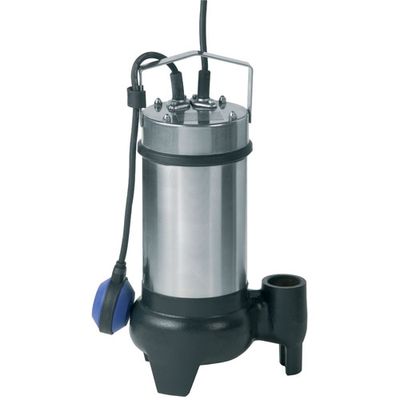

Salmson - Model FVO 204 -Submersible Pump

• Flow rates of up to : 19 m³/h
• Manometric head of up to: : 10 mWC
• Max. submergence depth : 5 m
• Fluid temperature limit : +0 to +40°C* (* maxi. 60°C for 10 min)
• Starting frequency : Recommended: 20/h - maximum: 50 h
• Maximum particle size : 40 mm
• DN discharge port: : DN 40
• Mains supply : 1~230 V, 3~400 V, 50 Hz
• P2 power : 0.75 kW
• Configuration : Single
• Regulation mode : Fixed speed

• For the lift-pumping of wastewater, rainwater and infiltrations from collective residential, tertiary and commercial buildings.

Easy installation

• Compact product
• Fixed installation

Easy maintenance

• Possible to maintain the oil chamber from outside.

Protection of the pump and system

• S1 continuous submerged operation
• Integral motor protection via temperature sensor for single-phase versions
• Integral float switch for single-phase versions
• Sealing of motor by mechanical seal

Motor

• Asynchronous technology motor with extended shaft and 304 stainless steel construction

Hydraulics

• Submersible one-piece pump
• Cast-iron housing
• Vortex impeller
