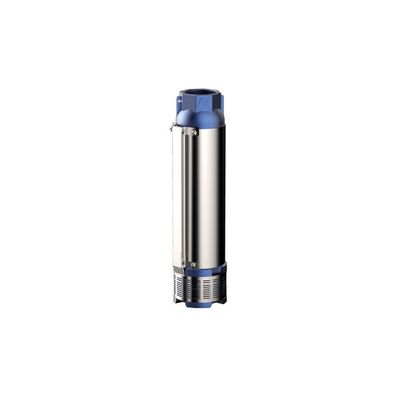

Panelli - Model Series 140 PS -Submersible Pump 6 inches High Capacity Semiaxial Impeller
FromPanelli s.r.l.
Submersible pump 6 inches high capacity semiaxial impeller 140 PSX are high efficiency semiaxial pumps suitable for clean water applications such as civil and industrial water supply, booster systems, firefighting systems, irrigation and water networks. Serie 140 PSX Impeller in Noryl, diffuser in Noryl, intermediate casing and external sleeve in AISI 304, delivery bowl and suction cage in Stainless steel AISI 304.
Most popular related searches
submersible pump
fire fighting system
booster system
water network
industrial water
water supply
water booster system
water booster
stainless steel strainer
strainer
ADVANTAGES
- Very compact pump, heavy duty construction easy assembly and disassembly, high performances.
- Pump fitted with low friction counter trust for longer impeller life.
MATERIALS
- Impellers and diffusers in GFN2 Noryl, AISI 304 stainless steel intermediate element, sleeve, strainer and screws.
- Suction cage and delivery bowl in cast iron for 140 PS version, Suction cage and delivery bowl in AISI 304 stainless steel for 140 PSX version. Counter thrust in PTFE + 25% graphite.
HYDRAULIC PERFORMANCES
- Capacity up to 54 m³/h and HMT up to 390 m.
- Motor power up to 37 kW-50 HP.
- Maximum sand tolerance: 50 g/m³.
