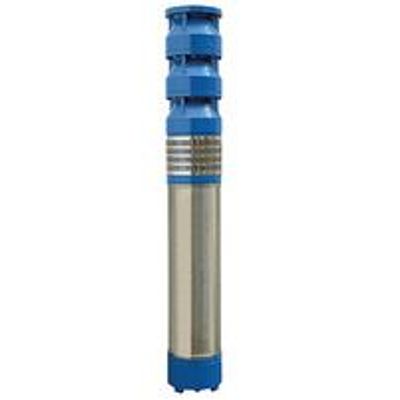

Chuan-Yi-Electric - Submersible Pumps
The motor is constructed to lubricate by water, internal filling clean water that cannot Cause water pollution. Quality is reliable and durable, without complex maintenance, excellent electricity properties and high efficiency. Rugged construction will not be deformed.
Most popular related searches
submersible pump
well water supply
centrifugal impeller
water pollution
well water
deep well
pump station
water supply
submersible pump motor
water pump station
- Stator outer tube made of stainless steel welding, stainless steel inner lining, high insulation wire and sealed by epoxy provide high insulation, good corrosion resistance, heat radiating good, high pressure resistance for deep well.
- Super lower suction level, is not electricity leakage.
- Centrifugal impeller design increase pump head
- Two sets of mechanical seal and thrust bearings increase anti-wear ability and long life.
- Precisely impeller balance calibrate by balancing machine. The pump runs smoothly and silently.
- Safety design makes pump with 24 hours continuous operation ability.
- Motor shaft directly connect to impeller for the best energy saving.
Performance Specification
- Range of power:
- 2HP ~ 500HP
- 1.5W ~ 370KW
Range of head:
- 3M ~ 300M
- 10?(ft) ~ 1000?(ft)
Range of capacity:
- 26US/GPM ~13200US/GPM
- 0.1m³/min ~50m³/min
- 140CMD ~ 72000CMD
- Pump from well
- Water supply for building and industry
- Agricultural irrigation
- As booster in tubes and circulating
- De-watering for pumping stations
