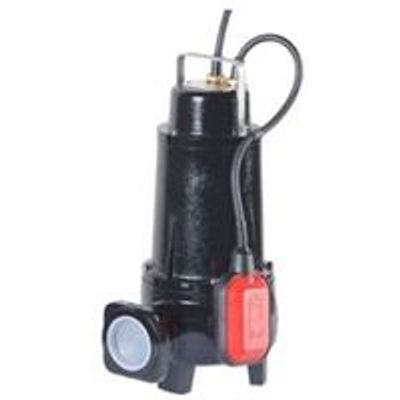

Soggia - Model DRVX -Submersible Pumps for Dirty Waters

SHARE

Submersible water pumps full cast iron, can get maximum flow of 620 l/min with maximum head of 9 meters. Those pumps are suitable to empy cellars, basements and tanks in domestical and industrial application. All DRVX pumps are supplied with float switch in the single-phase version. This pump is widely used in handcrafts and industry to dispose of clean or dirty water or other liquids. They are suitable for lifting fluids from tanks or storage traps for rainwater, cellars, for drying underpasses or other uses.

Most popular related searches

submersible pump

submersible water pump

sewage collection

domestic sewage

industrial drainage

industrial disposal

Capacity till 620 l/min (37,2 m3/h )
Head meters till 9 meters
Rotation speed 2800 r.p.m.
Bypass section: from 25 to 45
Temperature: 60°C for continuous duty— 90°C for intermittent duty
Minimum pumping level: 10cm

Motor cover, motor casing and pump body in cast iton G20
Impeller in cast iron G20
Motor shaft in Stainless steel AISI 420
Mechanical seal silicon carbide/alumina (Top seal with lip)
High quality bearings
Cable: 10 meters in H07RN-F and float switch (only Single-phase)

Emptying blacks wells and sewage collection
Sewage with suspended solids
Handling domestic sewage and industrial
Sub-drainage areas
Emptying seepage water

Two pole electric motor with die-cast aluminium rotor in oil bath
Protection class IP 68
Class of insulation F
Single-phase motor at 220V - 50 Hz; Built in motor protector to prevent damage in the event of overheating and condensing
Three-phase motor at 380-480 V - 50Hz; protection must be provided by user.
