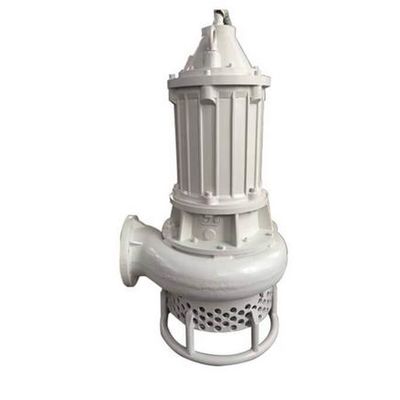

Minerco - Model NSQ Series -Submersible Sand Pump

• Hydraulic Design: Motor and pump are coaxially submerged, enabling efficient energy transfer to handle solids and slurries effectively.
• Material Construction: High chromium, wear-resistant alloy used for wetted parts with large flow channels.
• Stirring Impeller: Includes a stirring impeller to agitate slag deposits into turbulent flow, eliminating the need for additional auxiliary equipment for high-concentration transmissions.
• Mechanical Seal: Unique mechanical seal device balances internal and external oil chamber pressures, ensuring motor integrity.

• Efficiency: Highly efficient and cost-effective design suitable for demanding hydraulic dredging operations.
• Durability: Long-life materials ensure extended service life under challenging conditions.

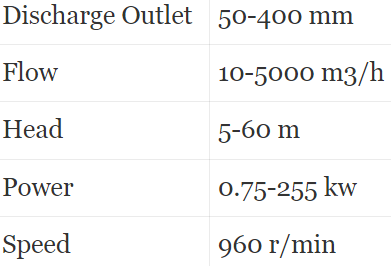

• Selection Parameters: Critical parameters include outlet diameter, flow rate, motor power, impeller speed, pumping rate, maximum particle size, and weight.

The NSQ Submersible Sand Pump is ideal for applications involving:

• Solid Handling: Transporting solid particles, pulp, and large deposits of coal, mud, sandstone, and other abrasive media.
• High-Concentration Transmission: Stirring impeller facilitates high-concentration slurry transmission without additional auxiliary equipment.
• Industries: Suitable for conveying sludge, ore and coal slurries, and sandstone containing large solid particles.
