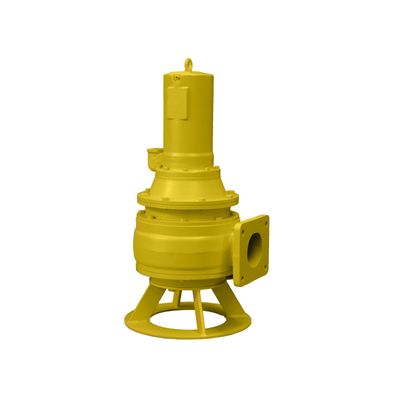

Zehnder - Model ZF 80.2 Ex -Submersible Sewage Pump
FromZehnder Pumps
Submersible sewage pump made of cast iron. Motor housing, pump housing and seal carrier made of cast iron. Single-channel impeller made of cast iron with fibre cutting insert. Double bidirectional mechanical seals with intermediate oil chamber. Pressure outlet dn 100. Explosion-proof motor (ex.). Lateral cable entry with strain relief and break protection. Protection grade ip 68 – fully submersible.
Most popular related searches
submersible sewage pump
sewage pump
float switch
sewage
submersible pump
concrete pump
pump station
horizontal well
domestic pump station
pump seal
- pumping of sewage with coarse and long-fibred ingredients
- installation in domestic and public concrete pumping stations
- applicable for vertical and horizontal dry well installations (intermittent duty S3)
- pump with 10 m power cable
- all pumps without stand feet and outlet bend
- optional coupling system (see accessories)
- Article number 11226
- Power supply 400 V
- Frequency 50 Hz
- Power P1 3.200 W
- Power P2 2.500 W
- Nominal current 5,7 A
- Drive 1450 rpm
- Max. temperature 40 °C
- Max. flow rate 105,0 m³/h
- Head up to 11,0 m
- Free passage 80 mm
- P-dimensions (WxHxL) 580 mm x 600 mm x 790 mm
- features without float switch
- Article number 11232
- Power supply 400 V
- Frequency 50 Hz
- Power P1 4.400 W
- Power P2 3.300 W
- Nominal current 9,5 A
- Drive 1450 rpm
- Max. temperature 40 °C
- Max. flow rate 115,0 m³/h
- Head up to 14,0 m
- Free passage 80 mm
- P-dimensions (WxHxL) 580 mm x 600 mm x 790 mm
- features without float switch
