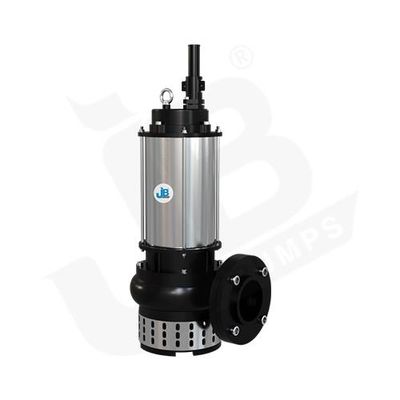

JB-Pumps - Model JBSP Series -Submersible Sewage Pumps
JB Pumps India Pvt. Ltd. is a leader in the pump manufacturing industry. It manufactures a great variety of pumps which are widely used for different industrial purposes. We develop high-quality Submersible Nonclog Sewage Pumps which transfer the solid material such as mining, sewage treatment, oil/gas industry, dredging and many more. It has a robust construction and reliable design.
The power consumption of the Submersible Nonclog Sewage Pumps is quite low which makes it a preferred choice among various industrial applications. Since the pump is submerged most of the time, it doesn`t produce much noise. JB Pumps manufactures a leak-proof Submersible Nonclog Sewage Pumps which is used as a dewatering application in heavy industries like power, steel, fertilizer and cement.
JB Portable submersible sewage pumps are designed to handle drainage and light sewage application with robust construction and low maintenance are reliable design.
Submersible Sewage Pumps Material of Construction:
- Motor Body: S.S 202
- Pump Casing: C.I IS 210FG260/S.S 304/S.S 316
- Impeller: C.I IS 210FG260/S.S 304/S.S 316
- Shaft: S.S 404
- Strainer: S.S 202
- Mech. Seal: Double Type: SiC Vs SIC/ TC Vs TC
- Bearing: Deep Groove Ball Bearing (SKF)
A submersible sewage pump is a wastewater pump used to transport liquids and solids from a residential sewage system to the main sewer line or septic tank.
These submersible pumps are installed at the bottom of the sewage basin to transfer untreated wastewater and sewage water without clogging the submersible cutter pump.
Being a leading manufacturer of Submersible Sewage pumps, we design heavy-duty pumps using corrosion-resistant materials. Our sewage pumps are environment friendly and consume less power for operating.
We provide different types of submersible sewage pumps to meet the requirements of diverse applications with full efficiency.
- Motor: Two Pole Continuous Duty Squirrel Cage Submersible Type Induction Motor
- Insulation Class: F
- Protection: IP – 68 / Thermal Over Load
- Cable: PVC Insulated Copper Conductor Flexible
- Shafting: S.S 410/S.S 431
- Range: 1 HP & 2 HP (220v / 1 Phase), 1 HP & 25 HP (420v / 3 Phase)
- RPM: 2800
- Size: 2 inch to 6 inch
- Connection: DoL
Submersible Sewage Pumps are commonly used for residential purposes and in municipal wastewater treatment plants that are not connected to the municipal sewer. These pumps are installed at the lowest point of the sewage basin or submerged in water to move liquids with soft solids that have a diameter of up to 2 inches.
When the sewage pump is switched on, the motors start rotating the impeller, which creates pressure to push the water flow in an upward direction. The water is pushed towards the impeller and goes to the discharge pipe. The non-clog submersible sewage pump is usually powered by a 10-25 ft electric cable.
- Made with anti-rust materials to avoid corrosion
- Energy efficient and power efficient for low power consumption
- Non-clogging design to handle fibrous solids effectively
- High quality avoids the hassle of frequent replacement and maintenance of the pump
- Leak-proof and robust construction for trouble-free performance
- Produce less noise to prevent noise pollution
- Highly convenient and can be easily installed
- Uses direct pressure to consume less power for pumping liquids
- Less prone to pump cavitation
- Simple to operate and maintain
- More effective solution than suction pumps
- Priming is not required before operating
