DAE Tampa - Model 355 -Submersible Slurry and Sand Pump - 3 Inch / 449 GPM / 7.5 HP
DAE Pumps Tampa 355 Submersible Slurry Pumps are rugged, reliable, and cost-effective pumps for transporting slurry, sand, and a variety of other abrasive materials. The DAE Pumps Tampa 355 offers an open stand or strainer, and agitator that provides for reliable suction and movement of solids up to 1-inch through a 3-inch discharge. The ergonomic Tampa 355 submersible slurry pumps transfer solids and liquids at a flow rate of up to 449 GPM and with 7.5 HP.
Uniquely designed, the robust DAE Pumps Tampa 355 submersible slurry pump is built from rugged cast iron construction with a high chrome iron impeller, agitator, and wear plate that provides durability and impact resistance in rough conditions. These robust submersible slurry pumps serve a wide range of slurry transport applications like mining, quarrying, construction sites, and other demanding industries.
The DAE Pumps Tampa 355 is part of the Tampa Series Submersible Slurry Pumps, which offer a variety of other sizes, flow rates, and speeds.
- Watertight Cable Entry
- Top Discharge and Side Flow Design
- Motor Protector
- Submersible 4-Pole
- C3 Ball Bearings and Hardened SS Shaft
- Double Mechanical Seals
- Extra Protection for Mechanical Seals and Shaft
- High Chrome Iron Impeller, Agitator, and Wear Plate
- Hardened Pump Volute
- Rugged Cast Iron Construction
- Food Grade Lubricant
- Discharge Size: 3″ (80 mm)
- Max Capacity: 449 GPM (122 m³/h)
- Solid Handling: 1” (25mm)
- Max Head: 69’ (21m)
- Max Power: 7.5 HP (5.5 kW)
- Max Operating Speed: 1750 RPM
- Type: Electric Submersible Pumps
- Phase: 3-Phase
- Classification: IP 68
- Motor:
- Type: Induction Motor
- Poles: 4 Pole
- Insulation: Class F
- Protector: Circle Thermal Protector
- Start Method: D.O.L.
- Lubricant: Food Grade (ISO VG32)
- Shaft Seal:
- Type: Double Mechanical Seal
- Desc.: Silicon Carbide VS Ceramic / Carbon
- Impeller Type: Opened
- Bearings: C3 Shielded ball bearings
- Cable:
- Type: PVC (CSA Certified) / H07BQ-F
- Length: 33’ (10m) or longer upon request.
- Materials:
- Pump Casing: Ductile Iron
- Impeller: Chromium Iron
- Motor Frame: Gray Iron
- Motor Shaft: Stainless Steel
- Wear Plate: Chromium Iron
- Agitator: Chromium Iron
- Max. Liquid Temp.: 104°F (40°C)
- Max. Sub. Depth: 66′ (20m)
- pH Range: pH 5 – pH 8

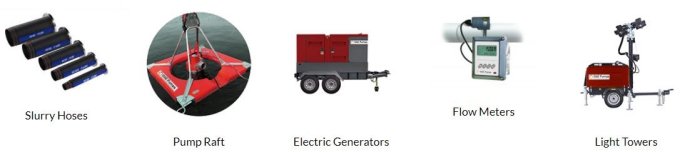

Get turnkey solutions that include dredge hoses, slurry flow meters, power units, and more. Choose from multiple sizes of slurry hoses for the transferring of materials, wireless flow meters for measuring the flow rate in gallons per minute of liquid, and power units for operation. Parts are always in stock and available for immediate shipping to anywhere in the US and the world.
