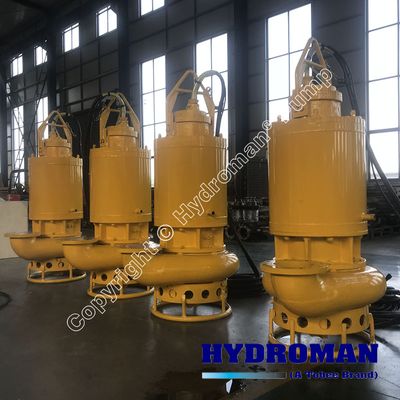

Hydroman® - Model 300TJQ110 -Submersible Slurry Pump with Cooling Jacket

Hydroman® Cooling Jacket Slurry Pump Features

• Rated for Class 1 slurries
  media with up to 20% solids
• Size：6-10inch
• Capacity: 100-700m3/h
• Head: 10-50 m
• Power: 15kw-160kw
• Max. particle: 60mm
• Sealing arrangement: Double mechanical seal
• Agitator or Cutter heads: Available
• Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.
• Temperature rating: 40°C (105°F) max
• Run dry motor
• Connection type:
   1/2 HP: MNPT
   3 to 30 HP: Hose coupling (MNPT available)
   50 to 100 HP: FNPT
• Impeller diameter(s): 3.4 to 14.2in
• Max solid size: 0.4 to 1in
• Agitator: included with 1 through 30 HP models
• Chopper Pump: available with 4/7.5 HP
• Integrated cooling jacket & thermal protection
• Double mechanical seal (single with 20 HP)
• Voltages: 110, 110/220, 460/575, 208, 230 V
• Cable included

Submersible pump with cooling jacket overview

• A Submersible pump with cooling jacket is available for the pumping liquid or external liquid to be circulated around the motor stator housing. By forced convection, it can suction extra heating and ensure the pump effective cooling.

• Extremely dry installation pump require particular motor cooling. If necessary, Hydroman® slurry pump with cooling jacket supply addtional motor cooling if the pumped fluid is hot or if the vertical pumps are always pumped. The same suitable if the fluid is lower than the motor level.

• The cooling jacket can additionally made as an aluminum casing over the stator cover. In such a way the heat is going to be conveyed to the pumping fluid by the aluminum casing.

• Centrifugal Slurry Submersible Pumps Cooling Jacket is electro vertical pump with hyperchorome or duplex SS materials suit for pumping sand, slurry and mude etc.

Hydroman® Electro Centrifugal Slurry Submersible Pumps Performance

• High standard production--Our Hydroman® submersible dredging pumps are made to pump liquid with a portion of sollids as the max weight density of ash can reach to 45% and the slag max weight density can reach to 60%.

• Longer life time--Wearing parts of cooling jacket pumps are all produced with abrasion-proof materials - hardness chrome alloy which can guarantee the slurry pumps longer using life and high stability.

• Higher safety--The Hydroman® Centrifugal pump motors has higher safety performance like as overheating protection, inlet detection projection and the electro vertical pumps can also work contiunously in  challenge working enviroments.

• Double Mechanical seal with Hydroman® pumps--The dual or double mechanical seal composed of two independent seals installed in a seal chamber of the pump external, which is controlled by an individual power supply. This makes them available for seal dangerous fluids as abrasive or corrosive fluids, for the seal side only connect with clear lubrication highly growing the meachanical seal service life. In addtion, the seal device can protect the electro motor from high-pressure water and impurities, so higher pumping capacity can be ensured.

Hydroman® Immersed Sludge Pump with Water-Cooled Jacket Applications

Deal with all kinds of wastewater with abrasive or corrosive in water and waste water projects and industries, particularly raw sewage containing long fibers and solid matter, liquids with gases or air, even as untreated active mud, desalination of seawater etc.

Convey wastewater, mud and solid water carrier for
• Effluent Treatment
• Water Treatment
• Construction Service
• Trenches and Basements
• Mining
• Civil Engineering
• Industrial
• Municipal
• Reprocessing
